Battery Electric Handling Trolley
Battery Electric Handling Trolley

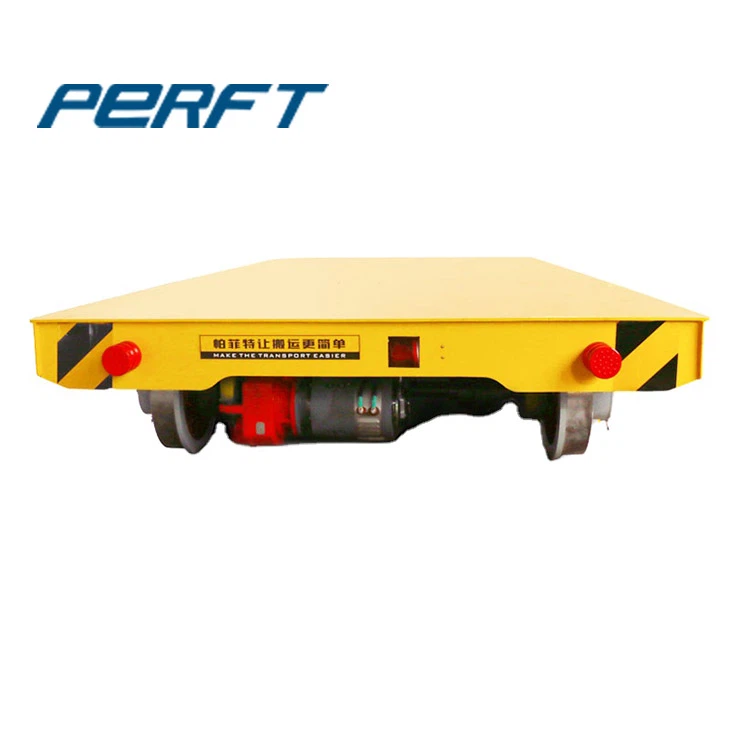

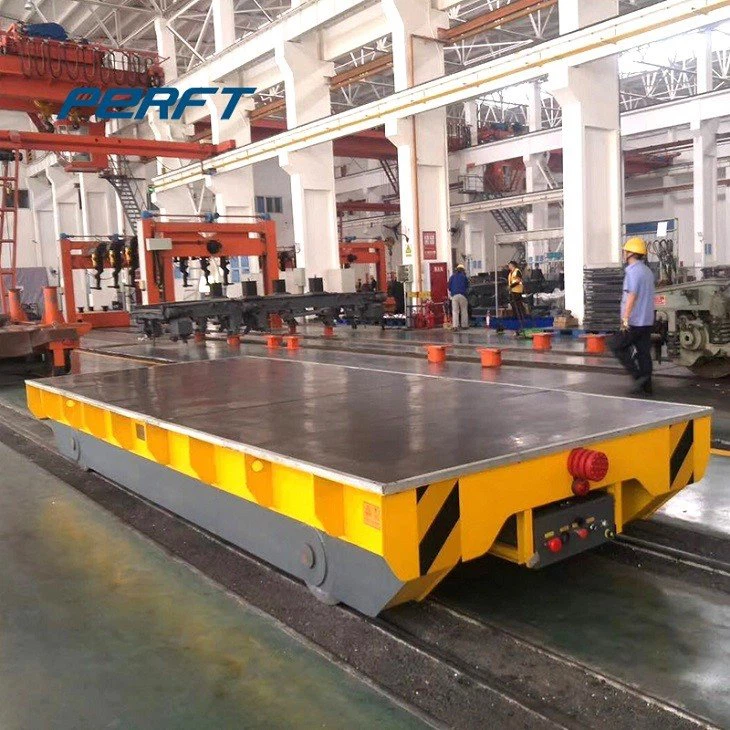

The battery electric handling trolley conveys steel plates to the production line. Battery powered, with a capacity of 25 tons.
Customize manufacturing material handling solutions according to your needs (1 ton to 1,000 tons).
Battery electric handling trolley, steel plate rail transfer cart.
|
Model |
BXC-2t |
BXC-20t |
BXC-50t |
BXC-100t |
BXC-150t |
|
|
Rated Load(t) |
2 |
20 |
50 |
100 |
150 |
|
|
Table Size(mm) |
Length(L) |
2000 |
4000 |
5500 |
6500 |
10000 |
|
Width(W) |
1500 |
2200 |
2500 |
2800 |
3000 |
|
|
Heigth(H) |
450 |
550 |
650 |
900 |
1200 |
|
|
Wheel Base(mm) |
1200 |
2800 |
4200 |
4900 |
7000 |
|
|
Rail Inner Gauge(mm) |
1200 |
1435 |
1435 |
2000 |
2000 |
|
|
Wheel Diameter(mm) |
270 |
350 |
500 |
600 |
600 |
|
|
Wheel Quantity |
4 |
4 |
4 |
4 |
8 |
|
|
Ground Clearance(mm) |
50 |
50 |
50 |
75 |
75 |
|
|
Running Speed(min) |
0-25 |
0-20 |
0-20 |
0-20 |
0-18 |
|
|
Motor Power(kw) |
1 |
2.2 |
5. |
10 |
15 |
|
|
Max Wheel Load(KN) |
14.4 |
77.7 |
174 |
343.8 |
265.2 |
|
|
Reference Weight(t) |
2.8 |
5.9 |
8 |
14.6 |
26.8 |
|
|
Recommended Rail Model |
P15 |
P24 |
P43 |
QU100 |
QU100 |
|
Remark: The product parameters are for your reference, all parts can be customized according to your requirements.
Battery Electric Handling Trolley
1. The operating distance of battery-powered transfer cart is not limited
2. Low frequency of use (high frequency of use can provide backup batteries)
3. Whether turning or going straight, battery electric handling trolley can be realized
4. The transfer cart can be used whether it is running indoor or outdoor, high temperature or explosive environment, ferry or rail.
5. Various special functions such as size, capacity, loading platform upper structure, speed, etc. can be customized according to customer requirements.
Application
