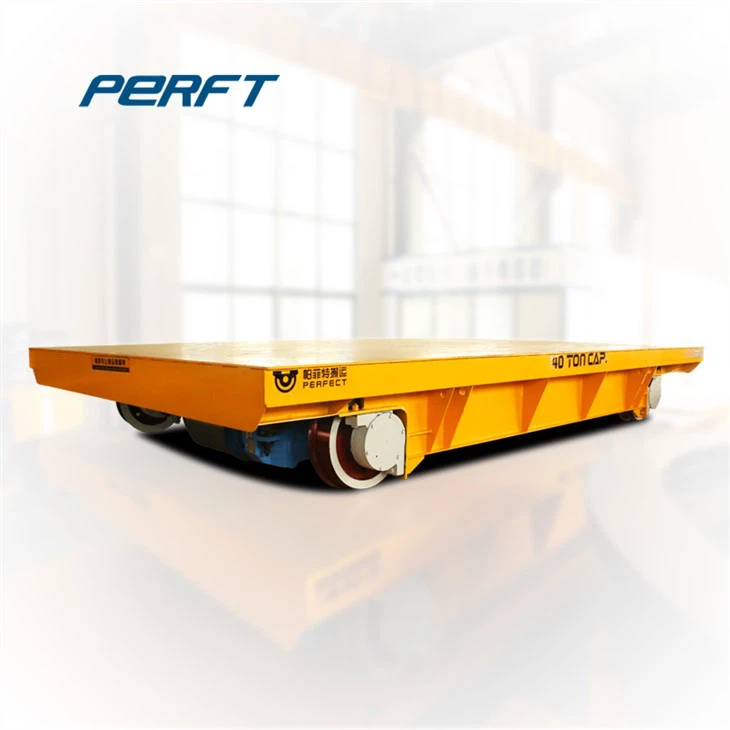

Bay to Bay Transfer Vehicle

1.Introduction of material railway transfer vehicle

PERFECT is specialized in designing and manufacturing of heavy duty material transport equipment:
Transfer Cart: Rail transfer cart, Trackless transfer car, Battery operated transport trolley, Coils cart, Ladle transfer cart, Hydraulic scissors lift table cart etc.
Industrial Trailer: Flatbed trailer, Factory trailer, Utility trailer, Workshop transfer trailer, Airport baggage cargo trailer, Car transport trailer, Motorized transfer trailer etc.
Cargo Transportation:Die cart, Coils transport cart, pipes transfer carriage, steel beam transporter, aluminum plate transport vehicle, transformer carrier bogie
Speical Handling Equipment: Ladle transfer trolley, Ferry Transfer wagon, Cross-rail transport equipmet, Motorized turntable, Vacuum furnace transfer cart, Automatic vehicle etc.

product-800-510

product-730-698

2.Application of material railway transfer vehicle

Uses of heavy duty motorized industrial transfer flat carts:

For horizontal load transfers of a wide range of material, we have the heavy duty, high quality Transfer Cart solution you need. Transfer carts are used: to carry loads along assembly lines; transfer material from one work station to the next; store and transport an entire shift worth of production;new factory building project;cargo horizonal transportation system. They can even be used as a stable yet moveable machine base.

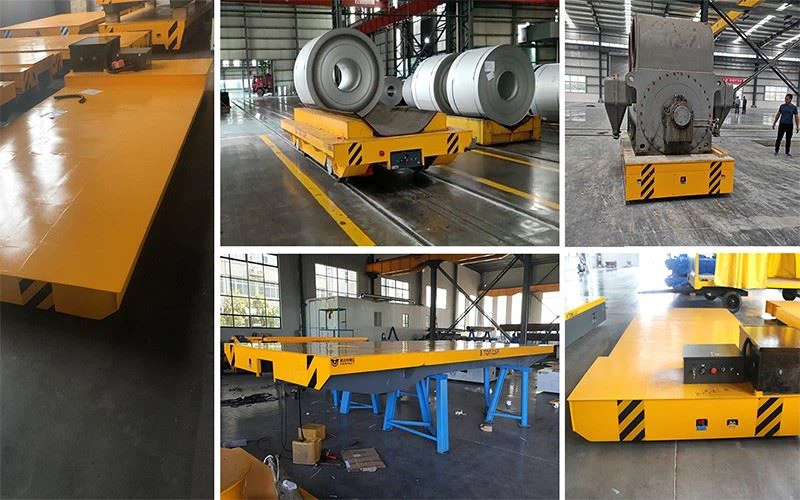

bxc

3.Applicable sites of material railway transfer vehicle

PERFECT treats the integrated management idea as a crucial tool to realize value for the benefits and requirements of the final customers and to promote the business on the national and international markets.The continuous tenacity of the quality management method makes our company to take responsibility for the handling problems of the customers and to solve and provide the most suitable way from a functional, technical, quality and commercial viewpoint.PERFECT conceives and manufactures a wide range of railway guided transfer carts, battery powered trolleys, intelligent self-propelled trolleys, die carts, industrial flat trailers, tilters and lifting platforms that operate in many industrial fields: metallurgy, manufacture, oil and gas, die shops, shipyards, chemical plant, automotive, mining industry, aerospace, power generation, coal industry, paper mills, metalworking, warehouse and many others!

4. Parameter of material railway transfer vehicle

Model		BXC-2t	BXC-20t	BXC-50t	BXC-100t	BXC-150t
Rated Load(t)		2	20	50	100	150
Table Size (mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Height(H)	450	550	650	900	1200
Wheel Base(mm)		1200	2800	4200	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	200	2000
Wheel Diameter (mm)		270	350	500	600	600
Running Speed (m/min)		0-25	0-20	0-20	0-20	0-18
Motor Power(kw)		1	2.2	5	10	15
Battery Capacity		180	180	330	440	600
Battery Voltage		24	48	48	72	72
Running Time When Full Load		4.32	4	3.3	3.2	2.9
Running Distance for One Charge(km)		6.5	4.8	4	3.8	3.2
Recommended Rail Model		P15	P24	P43	QU100	QU100

5. Our Factory
