Rail Battery Material Handling Vehicle
Max Speed：<25km/h
Product Name:Rail Battery Material Handling Vehicle
Usage：Heavy Duty Material Transportation
Application：Steel Industry, Factory, Warehouse, Port
Brand：Perfect
Load Capacity：1-300 Ton
Special Function：Anti-Explosion, Heat-Resistant, Lifting
Control Mode：Pendant/Remote/PLC Control
Power Mode：Battery/cable powered/rail powered....
Color:Customzied
Trademark:PERFECT
Transport Package:The Whole Cart Will Be Packed by Tarp. Specification:Customized Origin:Xinxiang,Henan
Send Inquiry
Product Details ofRail Battery Material Handling Vehicle
Rail Battery Material Handling Vehicle
Products Description
The battery of rail battery material handling vehicle is different from the battery that is usually used. It is actually a battery pack composed of multiple batteries of the same type. It is usually an essential requirement for the backup power supply of the electric flat car in case of an unexpected power failure. Only use it when necessary. This accidental use will inevitably lead to long-term non-use performance of the battery. It is recommended to charge and discharge the battery of the rail battery material handling carriage every 2 months to keep the battery performance in the best state. After the tooling is installed on the table of the electric flat car, a composite device is formed, which can not only complete the goods transfer, but also dock with other processes to improve work efficiency. The auxiliary devices that can be installed on the table surface include: welding roller frame, lifting frame, turning frame, conveying roller table, etc. The main problem solved by the car is to install an overload limit system on the flat car. If the rail battery material handling vehicle is overloaded, it will automatically alarm and the flat car will not start running, so as to protect the safety of personnel, molds and flat cars.
Products Description
|
Model |
BXC-2T |
BXC-10T |
BXC-20T |
BXC-30T |
BXC-50T |
BXC-63T |
BXC-150T |
|
|
Rated load (T) |
2 |
10 |
20 |
30 |
50 |
63 |
150 |
|
|
Table Size |
Length (liter) |
2000 |
3600 |
4000 |
4500 |
5500 |
5600 |
10000 |
|
Width (width) |
1500 |
2000 |
2200 |
2200 |
2500 |
2500 |
3000 |
|
|
Height (high) |
450 |
500 |
550 |
600 |
650 |
700 |
1200 |
|
|
Wheel base (mm) |
1200 |
2600 |
2800 |
3200 |
4200 |
4300 |
7000 |
|
|
Wheel diameter (mm) |
Φ270 |
Φ300 |
Φ350 |
Φ400 |
Φ500 |
Φ600 |
Φ600 |
|
|
Ground clearance (mm) |
50 |
50 |
50 |
50 |
50 |
75 |
75 |
|
|
Motor power (kW) |
1 |
1.6 |
2.2 |
3.5 |
5 |
6.3 |
15 |
|
|
Battery capacity (Ah) |
180 |
160 |
180 |
250 |
330 |
400 |
600 |
|
|
Battery voltage (V) |
24 |
48 |
48 |
48 |
48 |
48 |
72 |
|
|
Operating time at full load |
4.32 |
4.8 |
4 |
3.5 |
3.3 |
3 |
2.9 |
|
|
Running distance for one charge (km) |
6.5 |
7.2 |
4.8 |
4.2 |
4 |
3.6 |
3.2 |
|
|
Maximum wheel load (KN) |
14.4 |
42.6 |
77.7 |
110.4 |
174 |
221.4 |
265.2 |
|

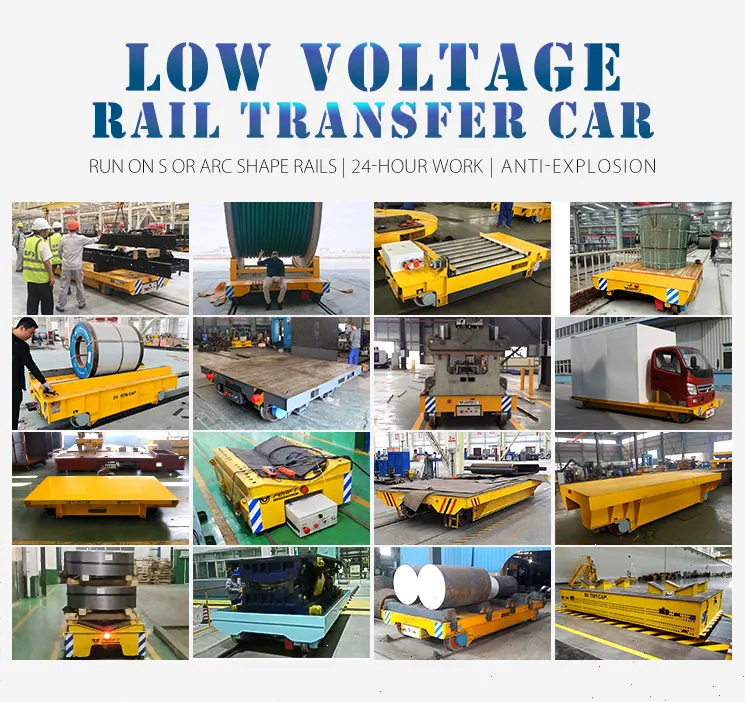

Application Site
Customer Visit
Our Factory & Comprehensive Services
Our manufacturing and assembly base for coil carriages is situated in Xinxiang City, Henan Province. As a full-service facility, we cover the entire production lifecycle-from mechanical and control system engineering to metal fabrication and precision machining-capable of delivering end-to-end solutions tailored to your needs.
Guided by the core values of quality, durability, and customer satisfaction, we have operated for over 15 years and earned internationally recognized certifications including CE, SGS, and ISO. Leveraging high-quality machinery, skilled workers, and experienced engineers, we are committed to providing you with top-tier rail-mounted steerable mold transfer vehicles.
Our Service Commitments
Structural Safety Guarantee: The load-bearing safety factor of our coil carriages is no less than 120%, ensuring reliable performance even under heavy or dynamic loads.
Customized Technical Support: We offer free design services for auxiliary devices and foundation drawings, alongside comprehensive technical assistance and provision of drawing materials to facilitate on-site installation and integration.
Round-the-Clock Support: We provide 16 hours of dedicated engineering support daily, complemented by 24/7 online service to address your inquiries or issues promptly.
Warranty Period Coverage: If our coil carriage fails to operate normally within the warranty period, we will provide repair guidance or arrange for the replacement of relevant parts within 24 hours to minimize your operational downtime.
Quality-First Mindset: All quality issues are prioritized and resolved within 24 hours. We maintain a rigorous, consistent attitude throughout the process, upholding our company's reputation and brand image with every service interaction.
