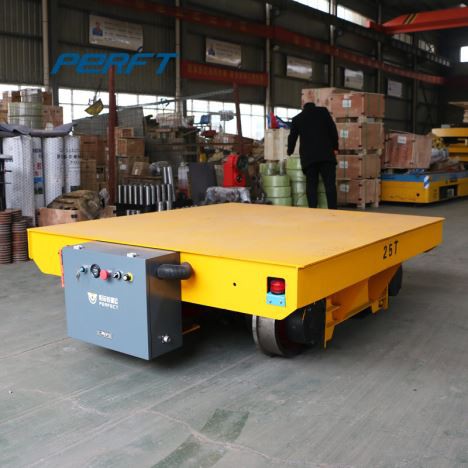

Railway Flat Cart

Railway Flat Cart

Towing connection hooks are installed on the front, rear, left and right sides of the rail transfer cart. Lifting holes are reserved on both sides of the cart for hoisting work. This rail transfer cart supports multiple power configurations: cable reel power supply, lithium battery pack power supply and bottom low-voltage conductive rail power supply. The transmission shaft is equipped with full insulation structure, and the conductive assemblies are optimized. The cart is fitted with an onboard step-up transformer. The collected electric power is controlled by the circuit system to realize forward and reverse travelling. An insulating sleeve as well as internal and external insulating gaskets is arranged between each wheel and transmission shaft to prevent electric leakage.

The wheel sets of the rail transfer cart are mounted directly under the frame beams via pillow block bearings. Each side is fixed by four anchor bolts. This structural design effectively lowers the platform height, improves operational stability and load capacity, and enables the frame to bear ground stress evenly.

The rail transfer cart mainly consists of frame assembly, gearbox (driving wheelset), driven wheelset and electric control system. The frame is integrally welded by four longitudinal side beams, multiple cross beams and base plates. Rolling bearings are arranged at eight supporting points so that the frame can withstand evenly distributed loads. Pillow block bearings mounted on wheel sets are fastened to the frame with anchor bolts. This rational structure helps reduce the overall height of the rail transfer cart.

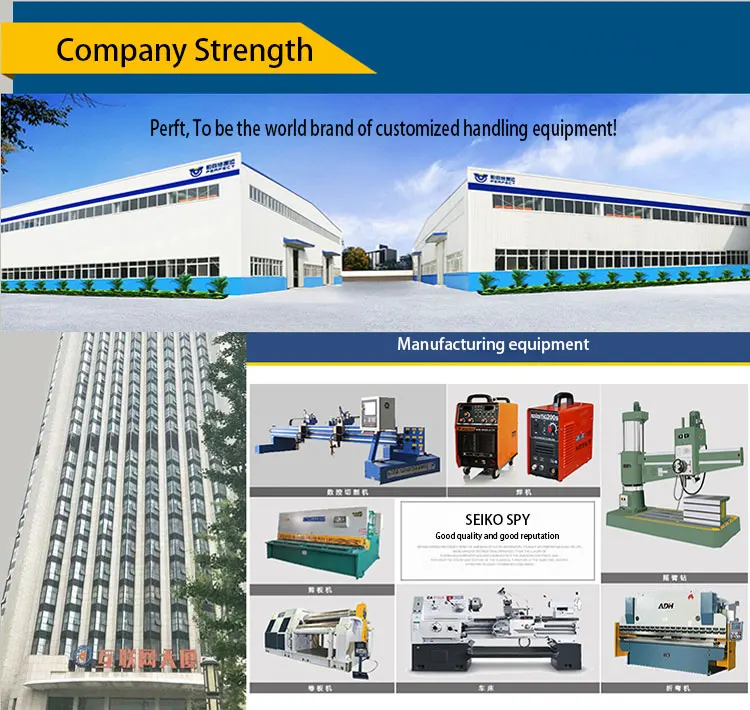

Our Factory & Comprehensive Services

Our manufacturing and assembly base for coil carriages is situated in Xinxiang City, Henan Province. As a full-service facility, we cover the entire production lifecycle-from mechanical and control system engineering to metal fabrication and precision machining-capable of delivering end-to-end solutions tailored to your needs.

Guided by the core values of quality, durability, and customer satisfaction, we have operated for over 15 years and earned internationally recognized certifications including CE, SGS, and ISO. Leveraging high-quality machinery, skilled workers, and experienced engineers, we are committed to providing you with top-tier rail-mounted steerable mold transfer vehicles.

Our Service Commitments

Structural Safety Guarantee: The load-bearing safety factor of our coil carriages is no less than 120%, ensuring reliable performance even under heavy or dynamic loads.

Customized Technical Support: We offer free design services for auxiliary devices and foundation drawings, alongside comprehensive technical assistance and provision of drawing materials to facilitate on-site installation and integration.

Round-the-Clock Support: We provide 16 hours of dedicated engineering support daily, complemented by 24/7 online service to address your inquiries or issues promptly.

Warranty Period Coverage: If our coil carriage fails to operate normally within the warranty period, we will provide repair guidance or arrange for the replacement of relevant parts within 24 hours to minimize your operational downtime.

Quality-First Mindset: All quality issues are prioritized and resolved within 24 hours. We maintain a rigorous, consistent attitude throughout the process, upholding our company's reputation and brand image with every service interaction.
