Transfer Trolley With Rail

Usage：Heavy Duty Material Transportation
Application：Steel Industry, Factory, Warehouse, Port
Brand：Perfect
Load Capacity：1-300 Ton
Special Function：Anti-Explosion, Heat-Resistant, Lifting
Control Mode：Pendant/Remote/PLC Control
Power Mode：Battery/cable powered/rail powered....
Color:Customzied
Trademark:PERFECT
Transport Package:The Whole Cart Will Be Packed by Tarp.
Specification:Customized

Send Inquiry

Chat Now

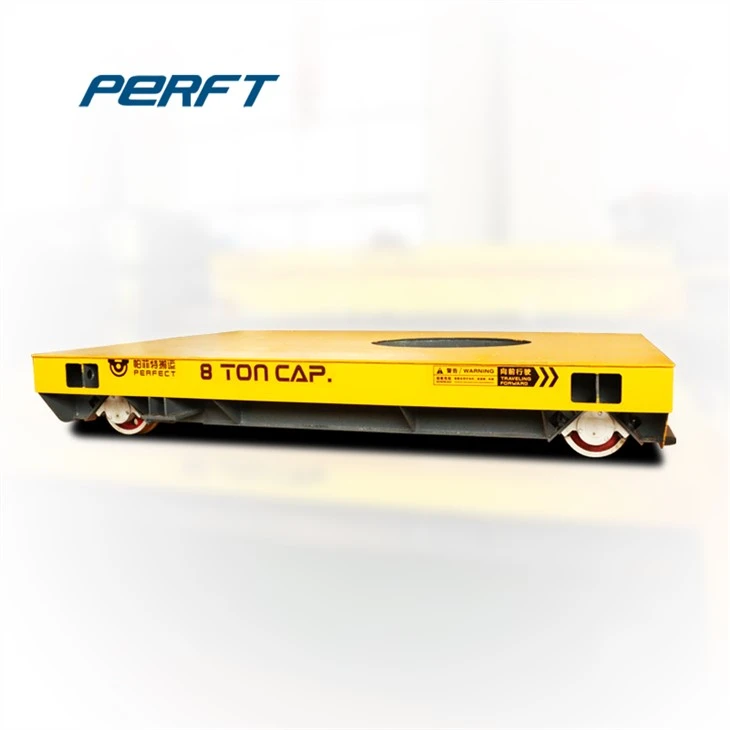

transfer trolley with rail

product-800-421

Model		BXC-2T	BXC-10T	BXC-20T	BXC-30T	BXC-50T	BXC-63T	BXC-150T
Rated load (T)		2	10	20	30	50	63	150
Table size	length(L)	2000	3600	4000	4500	5500	5600	10000
	Width(W)	1500	2000	2200	2200	2500	2500	3000
	Height(H)	450	500	550	600	650	700	1200
Wheel Base (mm)		1200	2600	2800	3200	4200	4300	7000
Wheel Diameter(mm)		Φ270	Φ300	Φ350	Φ400	Φ500	Φ600	Φ600
Ground Clearance (mm)		50	50	50	50	50	75	75
Motor Power (Kw)		1	1.6	2.2	3.5	5	6.3	15
Battery Capacity(Ah)		180	160	180	250	330	400	600
Battery Voltage(V)		24	48	48	48	48	48	72
Running Time When Full Load		4.32	4.8	4	3.5	3.3	3	2.9
Running Distance for one Charge(Km)		6.5	7.2	4.8	4.2	4	3.6	3.2
Max Wheel Load (KN)		14.4	42.6	77.7	110.4	174	221.4	265.2
