Cable Reel Power Transfer Cart
video
Cable Reel Power Transfer Cart

Cable Reel Power Transfer Cart

Cable Reel Power Transfer Cart This transfer cart gets power from the cable wound on the cable drum. The cable reel can automatically retract and unwind the cable with the movement of the trolley. It uses an AC motor to drive the reducer to move the wheels back and forth. Technical parameters of...
Send Inquiry
Product Details ofCable Reel Power Transfer Cart

Continuous Power for Factory Handling

In the foundry, the worst thing is losing power halfway through a job. Especially with those heavy molds-forklifts can't handle them, and battery carts die too soon. Then we got the Cable Reel Power Transfer Cart. Basically, it's just a flat cart with a long tail dragging behind it.

It's a heavy duty transfer cart​ with a thick welded frame. Unlike those fancy battery carts, it pulls power from a cable reel. As long as the shop has power, it just keeps running. We use it for moving transformers​ and big frames. The transport platform​ is wide enough for awkward loads, and it stays stable if you strap things down right.

We used to rely on cranes for die changes. Now, we just use this as a die change cart. It doesn't complain like a 4 high straddle carrier, and we don't have to worry about charging it like an electric platform truck. It's not pretty, but on rough shop floors, it's tougher than anything else. For delicate molds, we sometimes pair it with an air cushion transport​ system to keep things steady.

It's just a forklift alternative. No fancy tech, just a cart that shows up and does the work. For a steel mill, that's all you really need.

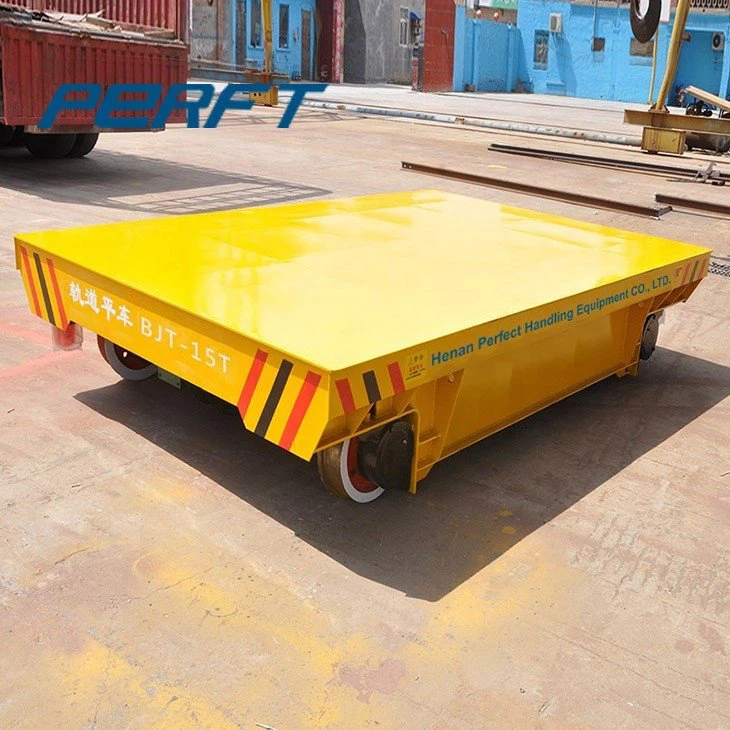

Cable Reel Power Transfer Cart



Technical parameters of some models(Customizable)

Model

BJT-2t

BJT-20t

BJT-50t

BJT-100t

BJT-150t

Rated Load(t)

2

20

50

100

150

Table Size(mm)

Length(L)

2000

4000

5500

6500

10000

Width(W)

1500

2200

2500

2800

3000

Height(H)

500

600

700

1000

1200

Wheel Base(mm)

1200

2800

4200

4900

7000

Rail Inner Gauge(mm)

1200

1435

1435

2000

2000

Wheel Diameter(mm)

270

350

500

600

600

Wheel Quantity

4

4

4

4

8

Ground Clearance(mm)

50

50

50

75

75

Running Speed(min)

0-25

0-20

0-20

0-20

0-18

Motor Power(kW)

0.8

2.5

5.5

11

15

Running Distance(m)

25

30

50

50

50

Max Wheel Load(KN)

14.4

77.7

174

343.8

265.2

Reference Weight(t)

2.5

5.6

7.8

14.1

26.2

Recommended Rail Model

P15

P24

P43

QU100

QU100

Transfer Cart



Advantage

Factory direct sales: There are no traders, only factories and customers.

National standard production standard

Professional engineer and testing department

Sandblasting: material or finished product

Export packing: wooden box or waterproof cloth



Certificates

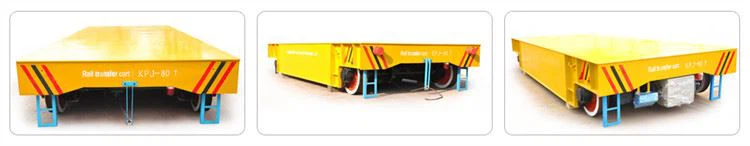

Cable Reel Transfer Cart
