Product advantages

01/

Flexibility of battery power supply: This device uses batteries as its power source, avoiding cable restrictions on free movement along the track and supporting fast charging for continuous operation.

02/

High heat resistance: Equipped with heat-resistant components, it can withstand environmental heat up to 1400 ° C, safely transport high-temperature steel ladles, and will not damage equipment

03/

Heavy load and stability: The load capacity ranges from small to 300+tons, and the equipment can operate smoothly when carrying materials, ensuring efficient transfer of steel ladles between smelting and casting workshops

04/

Safety and adaptability: It is equipped with safety design such as warning lights and alarms, supports customized track layout (such as curved tracks), and has other customized optional PLC/remote control. It is another control method besides manual control, suitable for indoor and outdoor use

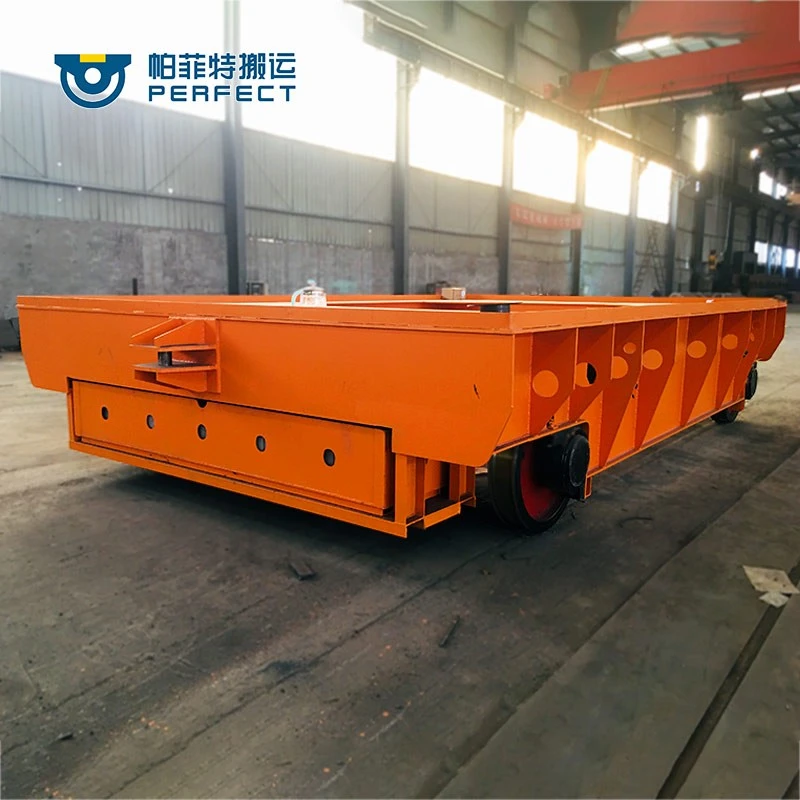

The image on the right shows the relevant components we produce. The frame of the car is a welded box girder structure, which can ensure stable and safe transportation. The transmission system is equipped with four sets of wheels and a metallurgical field specific motor, which can achieve efficient, smooth, and quiet operation. The mechanical braking system automatically engages when stopped, safely and easily preventing slipping.

Product Parameters

Model		BXC-2T	BXC-10T	BXC-20T	BXC-30T	BXC-50T	BXC-63T	BXC-150T
Rated load (T)		2	10	20	30	50	63	150
Table size	length(L)	2000	3600	4000	4500	5500	5600	10000
	Width(W)	1500	2000	2200	2200	2500	2500	3000
	Height(H)	450	500	550	600	650	700	1200
Wheel Base (mm)		1200	2600	2800	3200	4200	4300	7000
Wheel Diameter(mm)		Φ270	Φ300	Φ350	Φ400	Φ500	Φ600	Φ600
Ground Clearance (mm)		50	50	50	50	50	75	75
Motor Power (Kw)		1	1.6	2.2	3.5	5	6.3	15
Battery Capacity(Ah)		180	160	180	250	330	400	600
Battery Voltage(V)		24	48	48	48	48	48	72
Running Time When Full Load		4.32	4.8	4	3.5	3.3	3	2.9
Running Distance for one Charge(Km)		6.5	7.2	4.8	4.2	4	3.6	3.2
Max Wheel Load (KN)		14.4	42.6	77.7	110.4	174	221.4	265.2

Product Applicable Venue

1. Steel transfer in the casting workshop
Steel ladle scheduling: connecting steelmaking furnace continuous casting machine/refining furnace, heat-resistant and anti tilting to ensure high temperature safety.
Transfer of intermediate ladle: Continuous casting intermediate ladle (preheating/empty ladle) circulation, no cable drive adapted to complex tracks.
2. Metallurgical auxiliary materials and waste disposal
High temperature furnace material distribution: Roasted ore/coke is transported to the blast furnace, with high temperature resistance and long endurance suitable for multiple shifts.
Waste residue transportation: from the slag pit under the furnace to the treatment workshop, with heat resistance protection and track limit adaptation to harsh environments.
3. Adaptation to special working conditions
Special steel plant circulation: 20-50t small steel ladle connection refining casting, speed regulation+warning adaptation to precision requirements. Low temperature operation: North workshop - stable start-up at 30 ℃, fast charging adapted to battery life loss.
