Custom Electric Rail Cart
China-customized 100-ton rail transfer Car

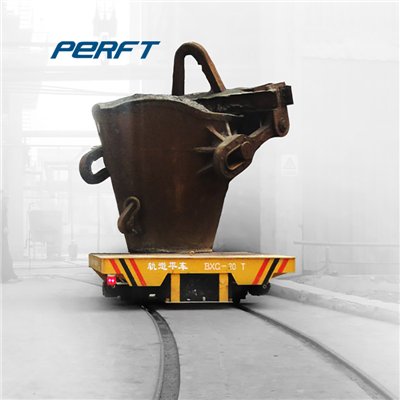

Industrial Steel Company Electric Power Supply Rail Transfer Cart Customized Length( The industrial steel plant power supply rail transfer vehicle, which supports length customization, is a proprietary equipment for heavy material transfer in steel plants. The equipment is provided with stable power by the power supply track, without frequent charging, and is suitable for long-term continuous operation in scenarios such as steel plant workshops, raw material areas, and production areas; We can flexibly customize the length of the vehicle according to the layout of the steel plant site and the size of the materials, accurately match different transportation needs, ensure smooth and efficient transportation of heavy objects such as steel billets and steel, and help optimize the material flow chain of the steel plant.
Product Specifications
| parameter item | Specification |
| Body length | Customization range: 3m -12m (regular, adjustable according to material length (such as 6m/9m steel billets) and site turning radius) |
| vehicle width | 1.2m -2.5m (conventional, adaptable to track spacing and material width) |
| Body height | 0.6m -1.2m (low table design, easy for material loading and unloading, customizable) |
| rated load | 5t -50t (regular, can be customized according to the weight of heavy materials in the steel mill (such as steel billet bundles, steel products)) |
| track pitch | 600mm/900mm (standard gauge, can be adapted according to the existing track of the steel plant) |
| heat resistance | Optional high temperature protection kit (insulation treatment can be applied to areas in contact with high temperature materials, with a temperature tolerance of ≤ 200 ℃ |
|
Model |
|
BXC-2t |
BXC-20t |
BXC-50t |
BXC-100t BXC-150t | |
|
Rated Load(t) |
2 |
20 |
50 |
100 |
150 |
|
|
Table Size(mm) |
Length(L) |
2000 |
4000 |
5500 |
6500 |
10000 |
|
Width(W) |
1500 |
2200 |
2500 |
2800 |
3000 |
|
|
Heigth(H) |
450 |
550 |
650 |
900 |
1200 |
|
|
Wheel Base(mm) |
1200 |
2800 |
4200 |
4900 |
7000 |
|
|
Rail Inner Gauge(mm) |
1200 |
1435 |
1435 |
2000 |
2000 |
|
|
Wheel Diameter(mm) |
270 |
350 |
500 |
600 |
600 |
|
|
Wheel Quantity |
4 |
4 |
4 |
4 |
8 |
|
|
Ground Clearance(mm) |
50 |
50 |
50 |
75 |
75 |
|
|
Running Speed(min) |
0-25 |
0-20 |
0-20 |
0-20 |
0-18 |
|
|
Motor Power(kw) |
1 |
2.2 |
5 |
10 |
15 |
|
|
Battery Capacity |
180 |
180 |
330 |
440 |
600 |
|
|
Battery Voltage |
24 |
48 |
48 |
72 |
72 |
|
|
Running Time When Full Load |
4.32 |
4 |
3.3 |
3.2 |
2.9 |
|
|
Running Distance for One Charge(Km) |
6.5 |
4.8 |
4 |
3.8 |
3.2 |
|
|
Max Wheel Load(KN) |
14.4 |
77.7 |
174 |
343.8 |
265.2 |
|
|
Reference Weight(t) |
2.8 |
5.9 |
8 |
14.6 |
26.8 |
|
|
Recommended Rail Model |
P15 |
P24 |
P43 |
QU100 |
QU100 |
|
Rail Transfer Car Application Sites
Industrial Manufacturing:
Metallurgy/steel: Transport steel coils, billets, and large components.
Machinery: Move heavy dies and equipment between workshops.
Others: Petroleum, petrochemicals, shipbuilding, and power stations (e.g., turbines).
Logistics & Warehousing:
Factory warehouses, ports, railway hubs: Transfer heavy cargo (pallets, bulk materials) with cranes.
Specialized Facilities
Painting rooms, precast concrete plants: Transport goods in environment-specific (anti-corrosion, etc.) settings.
Company Profile
Henan Perfect Handling Equipment Co., Ltd. was established in December 2015 and registered in Xinxiang Economic and Technological Development Zone, Henan. The legal representative is Zhao Zhigang, specializing in the design, production, sales, and foreign trade of electric handling, rail transportation, and other equipment and accessories; The company covers an area of 33300 square meters and has modern factories and equipment. Among the more than 150 employees, a high proportion are highly educated and technical personnel. It has long-term cooperation with universities, and its products have passed multiple international certifications and hold eight national patents. It can produce more than 80 categories of handling equipment in nine series ranging from 1 to 1300 tons, with strong carrying capacity and high degree of automation. Its products are sold well throughout the country and exported to more than 60 countries and regions.
