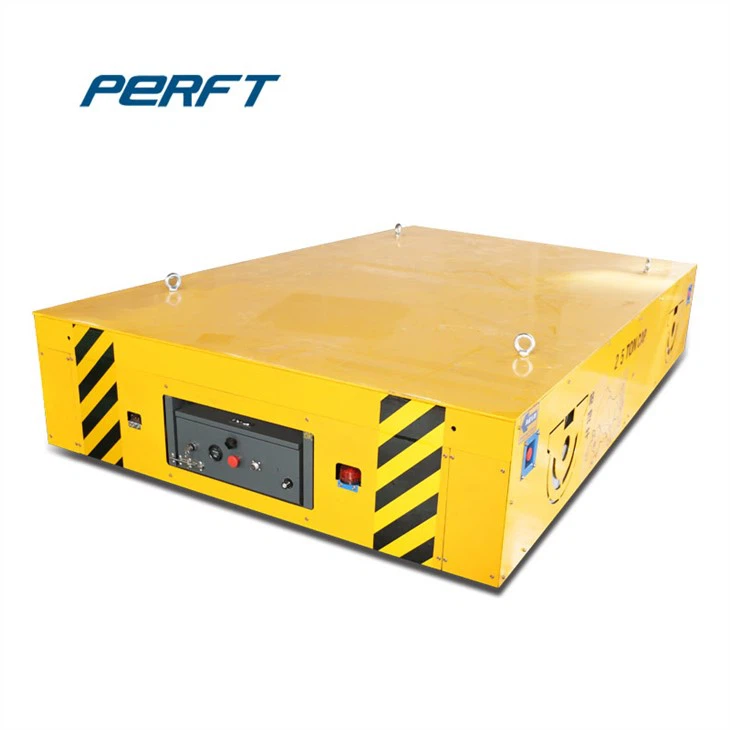

50 Tons Special Transfer Cart On-rail
Application：Steel Industry, Factory, Warehouse, Port
Brand：Perfect
Load Capacity：1-300 Ton
Special Function：Anti-Explosion, Heat-Resistant, Lifting
Control Mode：Pendant/Remote/PLC Control
Power Mode：Battery/cable powered/rail powered....
Color:Customzied
Trademark:PERFECT
Transport Package:The Whole Cart Will Be Packed by Tarp.
Specification:Customized
Send Inquiry
Product Details of50 Tons Special Transfer Cart On-rail
special transfer cart on-rail
A reliable solution for the horizontal transferring of loads along a fixed path.
Carts are mounted on steel rail for shuttling along a fixed path. Standard carts are DC powered. As these are semi-custom manufactured carts, they come in lengths and widths of to suit the application. Capacities are available up to 60tonne
| Model | BXC-2T | BXC-10T | BXC-20T | BXC-30T | BXC-50T | BXC-63T | BXC-150T | |
| Rated load (T) | 2 | 10 | 20 | 30 | 50 | 63 | 150 | |
| Table size | length(L) | 2000 | 3600 | 4000 | 4500 | 5500 | 5600 | 10000 |
| Width(W) | 1500 | 2000 | 2200 | 2200 | 2500 | 2500 | 3000 | |
| Height(H) | 450 | 500 | 550 | 600 | 650 | 700 | 1200 | |
| Wheel Base (mm) | 1200 | 2600 | 2800 | 3200 | 4200 | 4300 | 7000 | |
| Wheel Diameter(mm) | Φ270 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 | |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 75 | 75 | |
| Motor Power (Kw) | 1 | 1.6 | 2.2 | 3.5 | 5 | 6.3 | 15 | |
| Battery Capacity(Ah) | 180 | 160 | 180 | 250 | 330 | 400 | 600 | |
| Battery Voltage(V) | 24 | 48 | 48 | 48 | 48 | 48 | 72 | |
| Running Time When Full Load | 4.32 | 4.8 | 4 | 3.5 | 3.3 | 3 | 2.9 | |
| Running Distance for one Charge(Km) | 6.5 | 7.2 | 4.8 | 4.2 | 4 | 3.6 | 3.2 | |
| Max Wheel Load (KN) | 14.4 | 42.6 | 77.7 | 110.4 | 174 | 221.4 | 265.2 | |
Applications
Material or stock shuttle – Assembly transfer – Tank transfer – Movable machinery platform
Features
Flat steel deck – Flat Tread Steel Wheels – Drive Motor – Voltage Meter – Push Button Pendant
Options
Railings – AC power – Cable reel – Warning alarm – Wood decking material – Stainless steel decking – Custom paint colour – Rail guides – End stops
