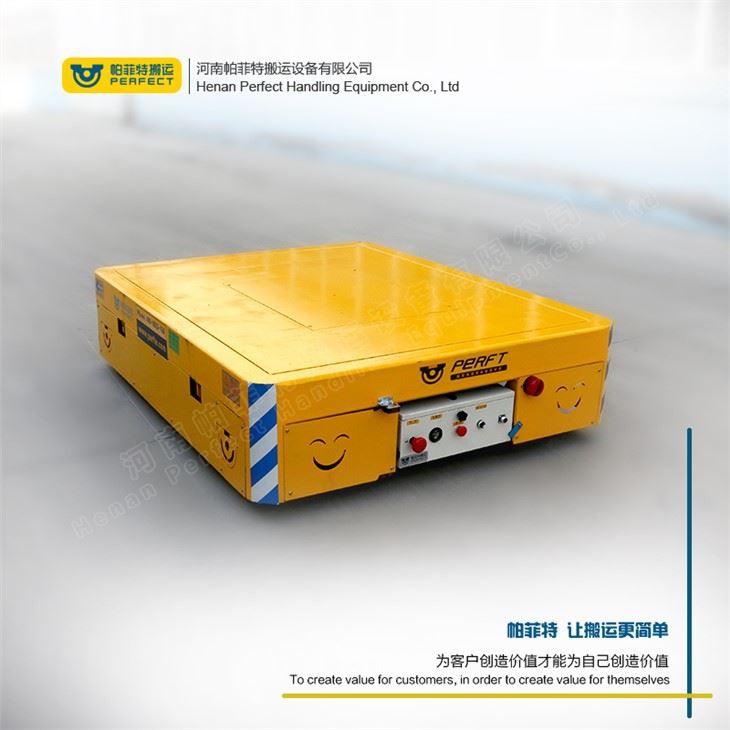

Battery Powered Low Bed Trailer
Battery Powered Low Bed Trailer:
The kind of low bed trailer is consisted of power source, gear train, steel structure bearing frame, steering gear, running gear, control system and fault diagnosis module. other functions. It can turn around on the cement floor.All the low bed trailer are equipped with warning alarm and security detection apparatus, and the alarm would ring and the car would stop immediately if there was any obstacle or pedestrian in the running path of the low bed trailer.
Battery Powered Low Bed Trailer:
| Model | BWP-5t | BWP-50t | |
| Rated Load(t) | 5 | 50 | |
| Impacted rated load(t) | 7.5 | 75 | |
| Structure of Frame | Steel plates welded, beam | ||
| thickness of the steel plate | 8 | 16 | |
| Cart weight(t) | 4.3 | 10.5 | |
| Max. wheel load (t) | 2.8 | 12 | |
| Ground requirement | Cement floor or Steel plate ground | ||
| Ground Clearance(mm) | 50 | 50 | |
| Table size (mm) | 3000 X 2000 | 6000 X 2300 | |
| Height of the whole cart (mm) | 450 | 700 | |
| Wheel base (mm) | 1500 | 1800 | |
| Axles distance (mm) | 2500 | 5200 | |
| Turning radius (mm) | 2501 | 5201 | |
| Turning type | Turning while driving with no stop | ||
| Control method for turning | Control button | ||
| Turning structure | Mechanical | ||
| Motor power (KW) | 3.5 | 15 | |
| Wheel diameter (mm) | 300 (4) | 500 (6) | |
| Wheel material | ZG55+hydropurture | ||
| Running speed (m/min) | 0-15 | 0-12 | |
| Brake principle | Electric magnetic brake | ||
| Ground balance | Mechanical automatic adjustment | ||
| Operation method | With wire or no wire | ||
| Battery model | D-250 24pieces | D-440 36pieces | |
| Battery maintainance | Free of maintainance | ||
| Charger's installation | Installed on cart | Split-type | |
| Cart color | Yellow and warning sign | ||
| Charger's function | Automatic stop for obstacles | ||
| Radar control | 3-0.3 m, Automatic stop for obstacles | ||
| Warning equipment | Sound and light | ||
| Other functions | Turning light, night light and power display | ||
