Transfer Trolley On Cement Floor
Transfer Trolley On Cement Floor
Product Introduction

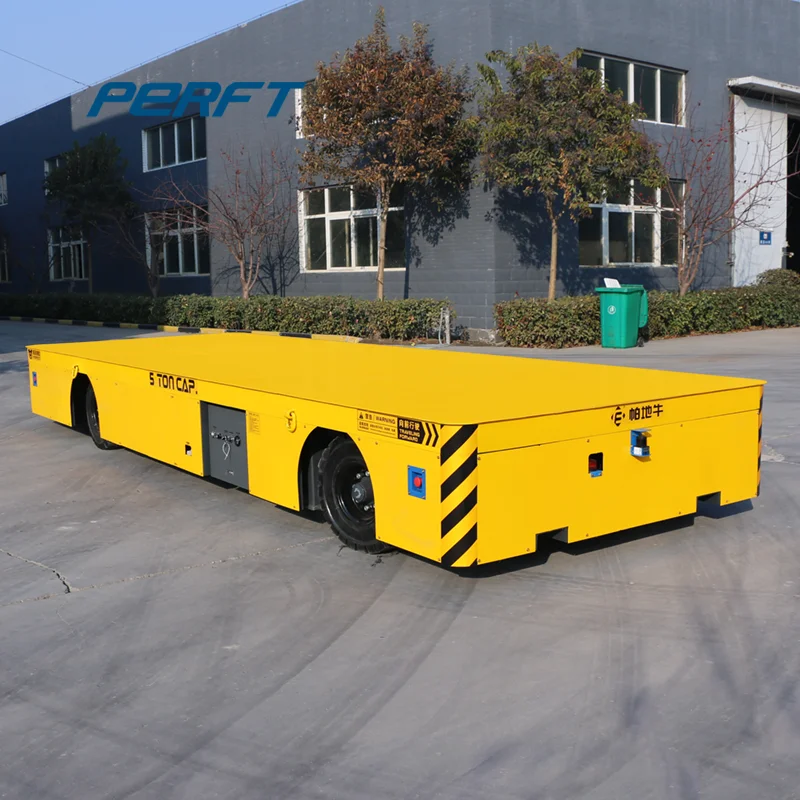

Transfer trolley on cement floor is a flat car powered by electric motors. Compared with rail electric flat cars, trackless electric flat cars have separated from the dependence on the track, reduced the track cost, and can be rotated 360 degrees in place, which is simpler, more flexible and free to use. The transfer vehicle on cement floor is equipped with warning and detection devices. When it encounters an obstacle, it immediately issues an alarm and stops automatically. The transfer carriage on cement floor is equipped with a fully automatic intelligent charger. The battery's stored electricity can supply the vehicle with uninterrupted work throughout the day. The whole use process has low cost and simple maintenance operation. The vehicle can also be equipped with other auxiliary devices such as positioning devices, clamping devices, lifting platforms, etc., which can be equipped with a PLC system to achieve complete automatic control and so on.
Product Parameters
| Model | BWP-5T | BWP-10T | BWP-15T | BWP-20T | BWP-30T | BWP-40T | BWP-50T | |
| Rated load (T) | 2 | 10 | 20 | 30 | 50 | 63 | 150 | |
| Impacted rated load | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 | |
| Structure of frame | Steel plates welded,beam structure | |||||||
| Cart weight | 4.3 | 5.3 | 6.6 | 7.9 | 8.8 | 10 | 10.5 | |
| Max Wheel Load (KN) | 2.8 | 4.3 | 4.6 | 5.6 | 7.7 | 10 | 12 | |
| Height (mm) | 450 | 530 | 600 | 600 | 600 | 700 | 700 | |
| Wheel Diameter(mm) | 1500 | 1700 | 1800 | |||||
| Motor Power (Kw) | 3.5 | 5 | 6 | 7 | 10 | 12 | 15 | |
| Wheel Diameter(mm) | Φ300 | Φ350 | Φ400 | Φ400 | Φ400 | Φ500 | Φ500 | |
| Running speed(m/min) | 0-25 | 0-25 | 0-25 | 0-25 | 0-25 | 0-25 | 0-25 | |
Applications
Electric transfer cart is mainly use in heavy industry, light industry, machinery, petroleum, metallurgy, mining, chemical, ship, etc., can handle steel coils, aluminum coils, galvanized coils, transformers, cable reels, castings, motors, containers, compartments, containers, pressure vessels, etc.
Feature
1. The safety requirements of the trackless flat car are high: most of the molds are heavy-duty workpieces, and the safety of personnel and articles must be ensured during transportation. No accidents such as bumps or dumping may occur.
2, trackless flat car heavy load capacity is strong: the weight of the mold is large, and some weight can reach hundreds of tons.
3. The trackless flat car runs flexibly: the mold has large elasticity, large volume, and large space during movement.
4, the trackless flat car should be a low table: the height limit of the die press, the mold transport height cannot be too high.
5, the trackless flat car to operate easily: the molding stamper is not just a stamper, it will be replaced by many molds.
6, the operation of the trackless flat car is not limited: the mold occupies more space in the workshop, and the transportation equipment should be able to transfer the mold anytime and anywhere.
7. Trackless flat car protection workshop floor: Since the mold is generally heavy, the pressure of each wheel is relatively heavy, so the wheel material is very strong and will not cause damage to the ground.
