Mold Steerable Transfer Trolley
Application：Steel Industry, Factory, Warehouse, Port
Brand：Perfect
Load Capacity：1-300 Ton
Special Function：Anti-Explosion, Heat-Resistant, Lifting
Control Mode：Pendant/Remote/PLC Control
Power Mode：Battery/cable powered/rail powered....
Color:Customzied
Trademark:PERFECT
Transport Package:The Whole Cart Will Be Packed by Tarp.
Specification:Customized
Send Inquiry
Product Details ofMold Steerable Transfer Trolley

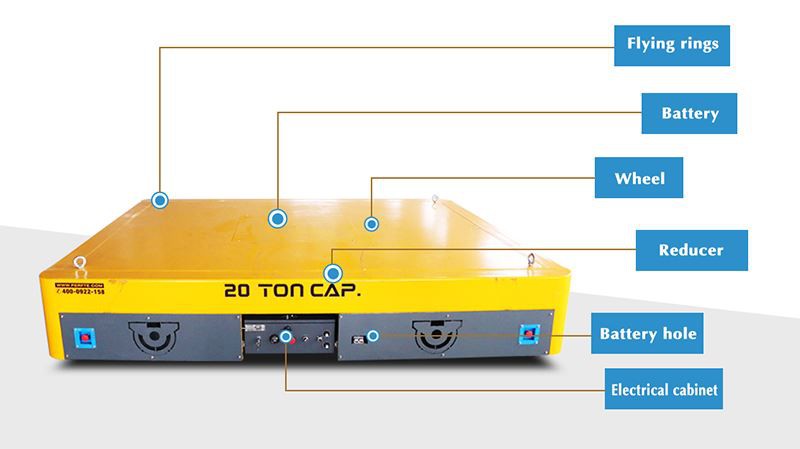

steerable transfer trolley
With this type of transfer vehicle, the design load and deck configuration can be customized to meet the specific requirements of capacity up to 300 tons.
Application of steering transfer trolley
Mold handling trolley - portable machine base - assembly support - metal coil conveyor - heavy equipment conveyor with lifting table - structural steel conveyor - pipe shuttle - precast concrete production vehicle - boom portable bottom with boom.
| Model | BWP-2T | BWP-10T | BWP-20T | BWP-30T | BWP-50T | BWP-63T | BWP-150T | |
| Rated load (T) | 2 | 10 | 20 | 30 | 50 | 63 | 150 | |
| Table size | length(L) | 2000 | 3600 | 4000 | 4500 | 5500 | 5600 | 10000 |
| Width(W) | 1500 | 2000 | 2200 | 2200 | 2500 | 2500 | 3000 | |
| Height(H) | 450 | 500 | 550 | 600 | 650 | 700 | 1200 | |
| Wheel Base (mm) | 1200 | 2600 | 2800 | 3200 | 4200 | 4300 | 7000 | |
| Wheel Diameter(mm) | Φ270 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 | |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 75 | 75 | |
| Motor Power (Kw) | 1 | 1.6 | 2.2 | 3.5 | 5 | 6.3 | 15 | |
| Battery Capacity(Ah) | 180 | 160 | 180 | 250 | 330 | 400 | 600 | |
| Battery Voltage(V) | 24 | 48 | 48 | 48 | 48 | 48 | 72 | |
| Running Time When Full Load | 4.32 | 4.8 | 4 | 3.5 | 3.3 | 3 | 2.9 | |
| Running Distance for one Charge(Km) | 6.5 | 7.2 | 4.8 | 4.2 | 4 | 3.6 | 3.2 | |
| Max Wheel Load (KN) | 14.4 | 42.6 | 77.7 | 110.4 | 174 | 221.4 | 265.2 | |
