Products Description

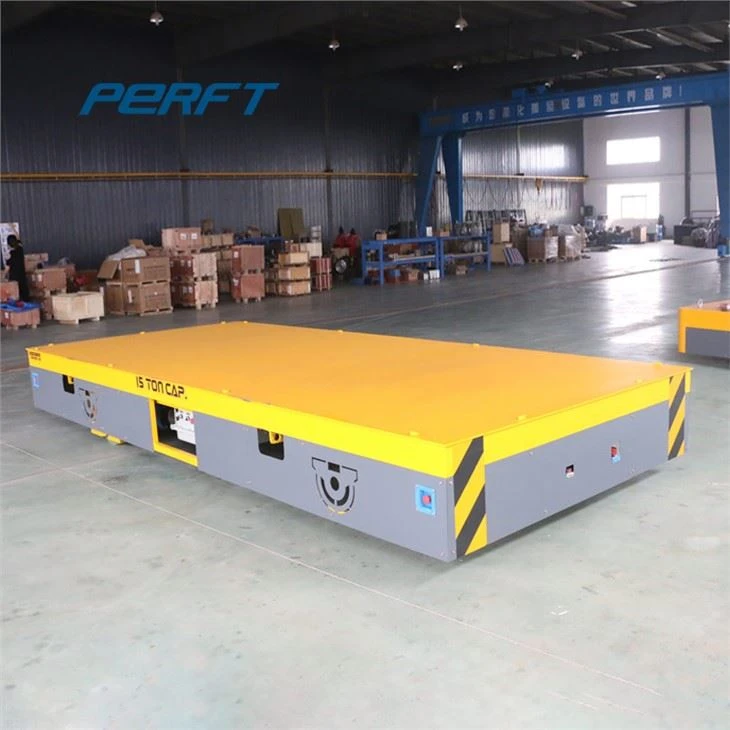

The battery operated platform cargo transfer carts on rail manufacturer is our most popular trolley. It is used to move dies,coils or materials between the pressroom and the die storage and maintenance area. This battery operated platform cargo transfer carts on rail manufacturer has the advantage of moving the entire length of the manufacturing facility, where dies that are moved by cranes are limited to the distance of the crane travel, or must be transferred from crane bay to crane bay.

Customized of Transfer Platform

Transfer Cart
Trackless transfer car, Battery operated transport trolley, Coils cart, Ladle transfer cart, Hydraulic scissors lift table cart, etc.
Rail Cart
Rail transfer cart, Cross-rail transport trolley, Curved rails transfer cart, S shape railway transport cart, L shape track transporter, etc.
Industrial Trailer
Flatbed trailer, Factory trailer, Utility trailer, Workshop transfer trailer, Airport baggage cargo trailer, Car transport trailer, Motorized transfer trailer, etc.
Cargo Transportation
Die cart, Coils transport cart, pipes transfer carriage, steel beam transporter, aluminum plate transport vehicle, transformer carrier bogie.
Special Handling Equipment
Ladle transfer trolley, Ferry Transfer wagon, Cross-rail transport equipment, Motorized turntable, Vacuum furnace transfer cart, Automatic vehicle, etc.

Products Parameters

Model		BXC-2t	BXC-20t	BXC-50t	BXC-100t
Rated Load(t)		2	20	50	100
Table Size (mm)	Length(L)	2000	4000	5500	6500
	Width(W)	1500	2200	2500	2800
	Height(H)	450	550	650	900
Wheel Base(mm)		1200	2800	4200	4900
Rail Inner Gauge(mm)		1200	1435	1435	200
Wheel Diameter(mm)		270	350	500	600
Wheel Quantity		4	4	4	4
Ground Clearance(mm)		50	50	50	75
Running Speed(min)		0-25	0-20	0-20	0-20
Motor Power(kw)		1	2.2	5	10
Battery Capacity		180	180	330	440
Battery Voltage		24	48	48	72
Running Time When Full Load		4.32	4	3.3	3.2
Running Distance for One Charge(Km)		6.5	4.8	4	3.8
Max Wheel Load(KN)		14.4	77.7	174	343.8
Reference Weight(t)		2.8	5.9	8	14.6
Recommended Rail Model		P15	P24	P43	QU100
