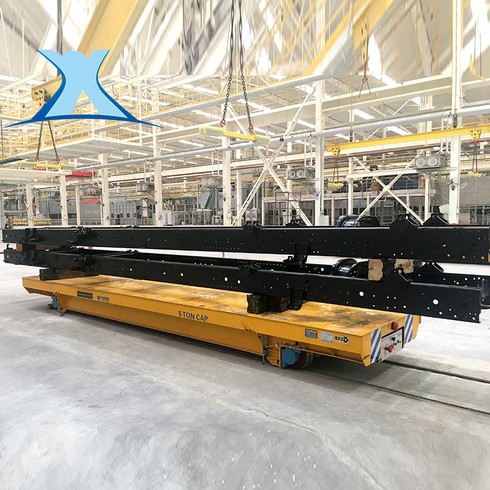

Heavy Material Rail Transfer Carts

Heavy duty mold material transfer carts with tracks can meet the needs of various types of heavy metal, steel, and large industrial equipment
At present, the rail type heavy-duty mold transfer trolley can meet various logistics and transportation needs of the factory logistics transfer center. It can move forward, backward, rotate, spin, and translate. It can move in all directions. It has three operating modes: manual, offline, and automatic.

Product Introduction

The 'track guided heavy-duty mold transfer trolley' not only ensures automatic loading capacity, but also enables automatic multi-directional movement, while ensuring smooth operation during automated operations.
It is not only convenient, but also powerful. The multifunctional compact chassis is designed to be used in conjunction with various mechanical vehicles for various applications.

The loading and unloading of goods can be realized without manual intervention, that is, reducing the cost of the enterprise, reducing the labor force, and improving the work efficiency.

Product Specifications

Parameter	Data
Guiding method	Magnetic strip
Dimensions	Customized
Capacity	1-30T
Running speed	5-35m/min
Positioning accuracy
Drive form	Rudder wheel drive
Battery	Lithium battery
Running Time When Full load	6-8h
Charging method	Automatic/Manual
Turning radius	500mm
Voltage	DC 24V/48V
Safety sensing range	Adjustable within 3m
Running route	Single line or complex route
Driving tips	Sound and light
Error alarm	Sound and light alarm
Security	Infrared+Laser+Anti-collision beam
Fault display	Data supply

Customizable parameters

Load capacity (T): can carry up to 500 tons
Dimensions (Mm): Customizable
Braking method: Electromagnetic braking
Operating speed (M/Min): 0~20m/Min stepless speed regulation
Power supply mode: lead-acid battery
Charger function: Fully automatic intelligent charging
Price:For detailed prices between 2500-60000, please consult us
