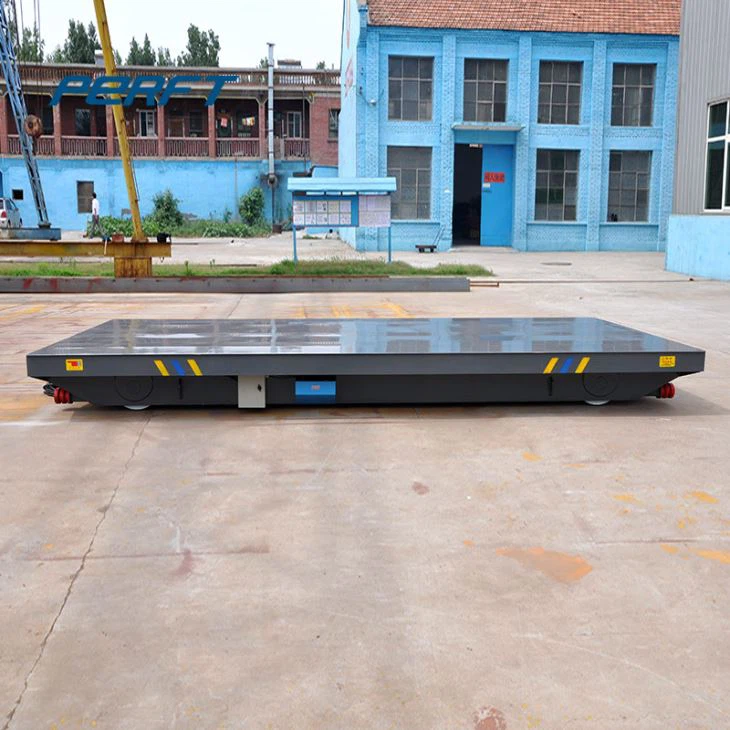

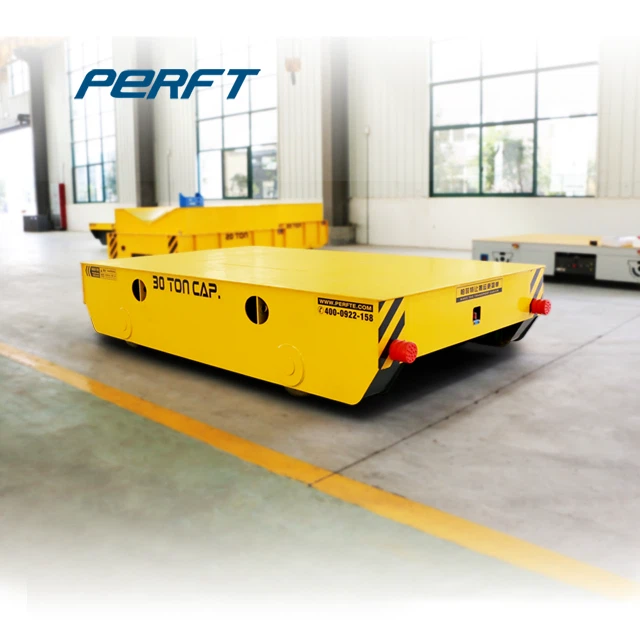

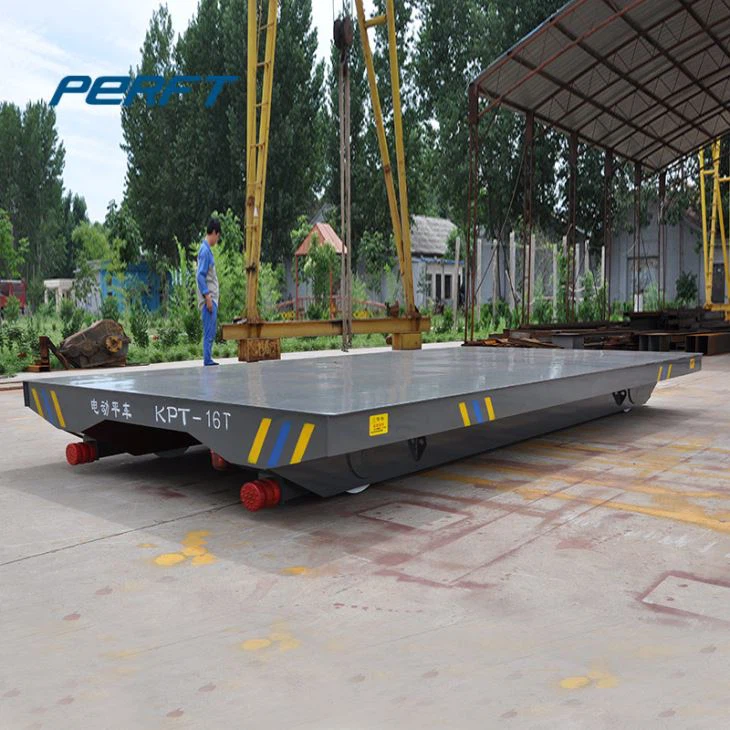

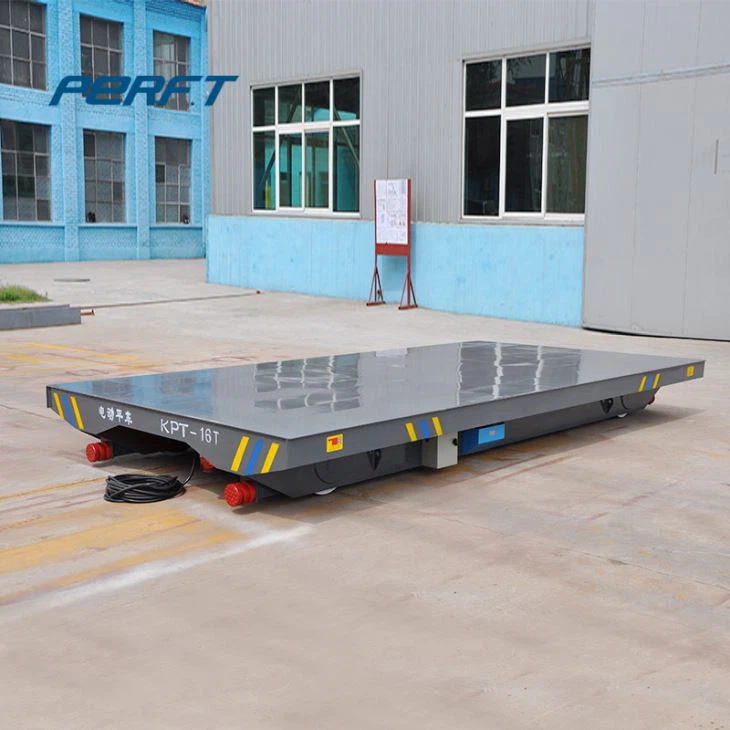

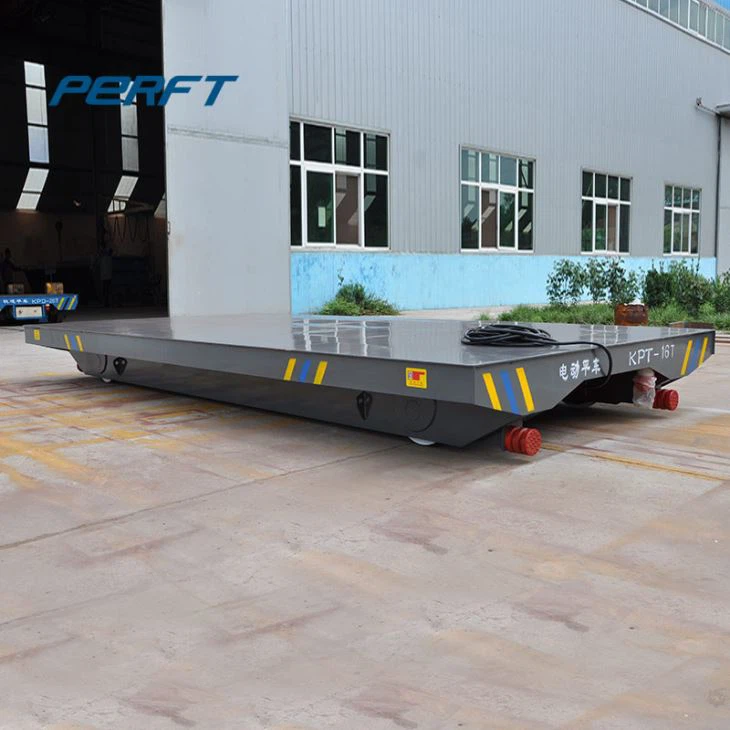

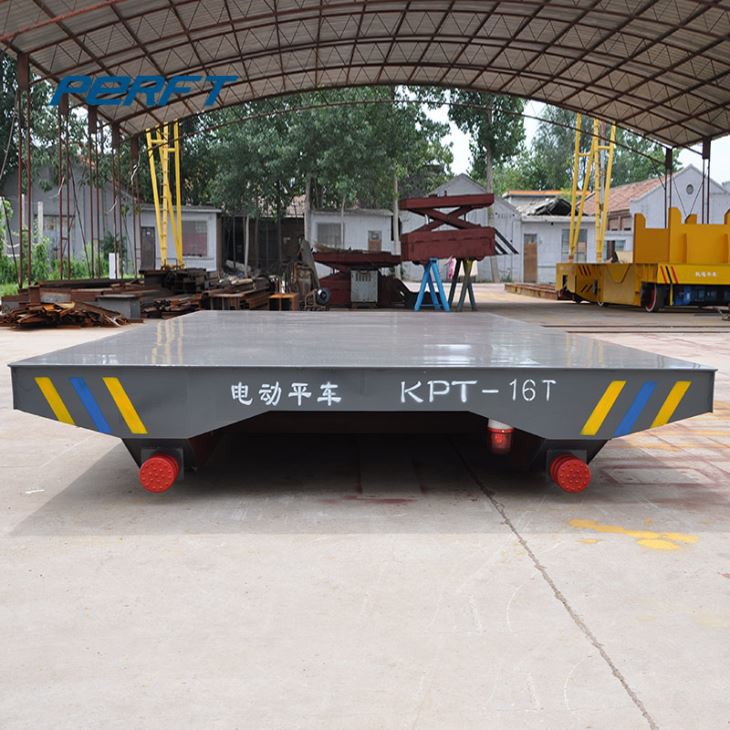

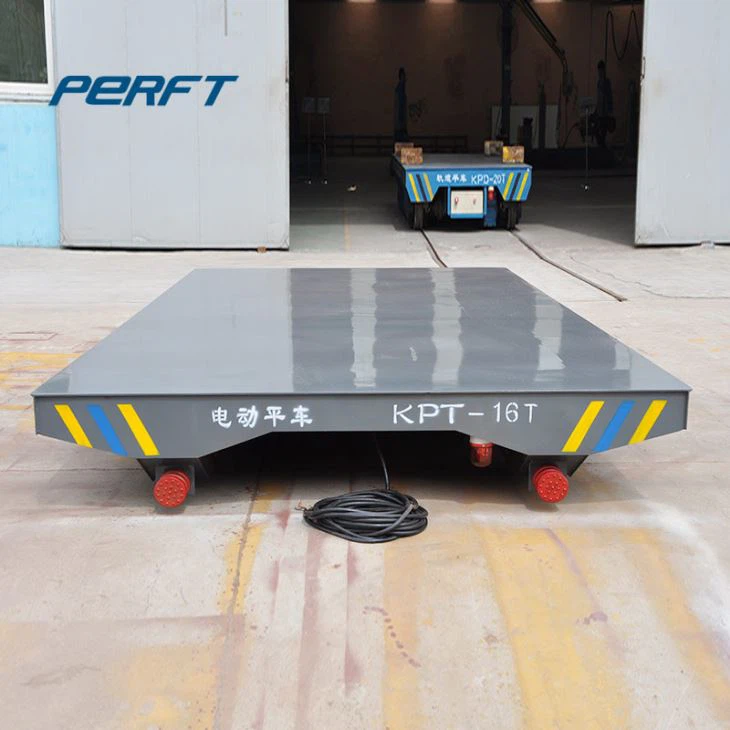

Rail Guided 30t Transfer Coil Cart
Rail Guided 30t Transfer Coil Cart
Product Introduction
The rail guided 30t transfer coil cart is equipped with an electromagnetic optical automatic guiding device, which can drive automatically on a set route. It has the function of automatically avoiding obstacles. High protection performance, no need for human driving in industrial applications, to achieve full automation.
The rail guided 30t transfer coil cart is equipped with V-shield to prevent coil falling. The use of the rail guided 30t transfer coil cart can improve work efficiency.
Product Parameters
|
Parameter |
Data |
|
Guiding method |
Magnetic strip |
|
Dimensions |
Customized |
|
Capacity |
1-30T |
|
Running speed |
5-35m/min |
|
Positioning accuracy |
|
|
Drive form |
Rudder wheel drive |
|
Battery |
Lithium battery |
|
Running Time When Full load |
6-8h |
|
Charging method |
Automatic/Manual |
|
Turning radius |
500mm |
|
Voltage |
DC 24V/48V |
|
Safety sensing range |
Adjustable within 3m |
|
Running route |
Single line or complex route |
|
Driving tips |
Sound and light |
|
Error alarm |
Sound and light alarm |
|
Security |
Infrared+Laser+Anti-collision beam |
|
Fault display |
Data supply |
Application site
Steel mill workshop: cross station transfer of steel coils after production, turnover of finished steel coils before storage;
tSteel processing plant area: precise transportation of cold-rolled/hot-rolled steel coils between cutting and stamping processes;
Steel coil storage area: docking shelves and cranes to achieve rail based storage and circulation of heavy steel coils;
Steel structure production base: point-to-point transportation of large-sized steel coil raw materials to processing equipment.
