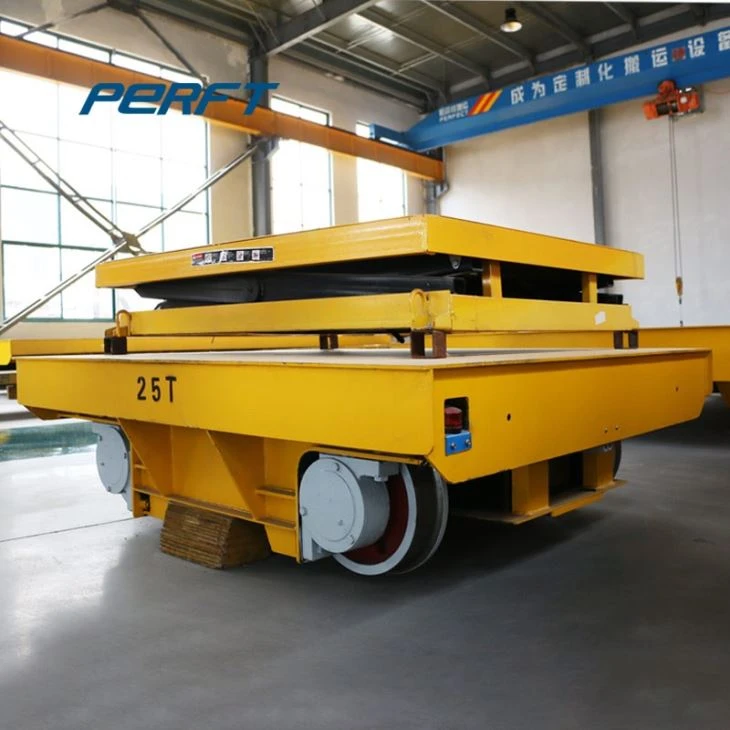

Hydraulic Lifting Motorized Transfer Car
Hydraulic Lifting Motorized Transfer Car
Perfect company designs and customizes a hydraulic lifting motorized transfer car according to customer requirements, the main purpose is to achieve the pouring of molten steel.
The electro-hydraulic lifting platform trolley, also named hydraulic lifting electric transfer cart, supports multi-person simultaneous operation to boost efficiency and safety for aerial working scenarios. It operates independently without external power supply and has no limitation on lifting cycles, featuring intuitive operation and stepless free height adjustment. The lifting stroke of this hydraulic motorized transfer cart can be customized to dimensions specified by clients. Equipped with an automatically rotating platform, it enables accurate alignment with the pouring nozzle for ladle pouring. Given its service for high-temperature molten steel conveyance, refractory lining is installed on the platform deck for effective thermal insulation against extreme heat. This tailor-made transfer cart has been fully commissioned for on-site production. End-user operation feedback confirms remarkable productivity improvement and excellent handling usability.
Our company specializes in rail flat cars, trackless flat cars, hydraulic lifting motorized transfer carriage, rollover electric flat cars, explosion-proof, high temperature resistance, PLC automation, assembly line electric rail flat cars, etc.
The main parameters:
1. Load: 2T
2. Table size: 2000mm*1500mm
3. Power supply method: rail power supply
4. Motor power: 1.5KW
5. Operation mode: wireless remote control
6. Running speed: 0-20m/min
Parameters
| Model | 2t | 20t | 50t | 100t | 150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 500 | 600 | 700 | 1000 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Running Distance(m) | 25 | 30 | 50 | 50 | 50 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.5 | 5.6 | 7.8 | 14.1 | 26.2 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
Components
