Products Description

A Motorized Transfer Trolley with Hydraulic Lifting System combines material transportation capabilities with vertical lifting functionality, making it a versatile solution for industries requiring precise height adjustment during material handling.

Products Parameters

Model		BXC-2T	BXC-10T	BXC-20T	BXC-30T	BXC-50T	BXC-63T	BXC-150T
Rated load (T)		2	10	20	30	50	63	150
Table Size	Length (liter)	2000	3600	4000	4500	5500	5600	10000
	Width (width)	1500	2000	2200	2200	2500	2500	3000
	Height (high)	450	500	550	600	650	700	1200
Wheel base (mm)		1200	2600	2800	3200	4200	4300	7000
Wheel diameter (mm)		Φ270	Φ300	Φ350	Φ400	Φ500	Φ600	Φ600
Ground clearance (mm)		50	50	50	50	50	75	75
Motor power (kW)		1	1.6	2.2	3.5	5	6.3	15
Battery capacity (Ah)		180	160	180	250	330	400	600
Battery voltage (V)		24	48	48	48	48	48	72
Operating time at full load		4.32	4.8	4	3.5	3.3	3	2.9
Running distance for one charge (km)		6.5	7.2	4.8	4.2	4	3.6	3.2
Maximum wheel load (KN)		14.4	42.6	77.7	110.4	174	221.4	265.2

Power supply mode of steel coil rail transfer vehicle

The motorized material handling equipment manufactured by Henan PERFECT Handling Equipment Co., Ltd. supports customized power supply configurations, including storage battery, cable reel power supply, conductive rail power supply and other options. We will recommend the most suitable transfer solution with matched power mode according to customers' actual operation environments.
Storage Battery Powered Transfer carts: This kind motorized transfer carts powered by battery is suitable for long running distance, low using frequency, "S" "L" and curved tracks, anti-explosion and ferry occasion.
Cable reel powered transfer cart on rails: This kind electric flat transfer carts powered by cable is most used in occasion with high using frequency, short running distance, straight direction route.
Conductive track powered motorized transport trolleys: This kind material automated transport trolleys get power from the conductive tracks installed on the floor. These transport trolleys are suitable for high using frequency and large loading capacity. It has strict requirements about the track installation which need to be insulated.
Steerable transfer carts: These steerable transfer carts apply to multidirectional heavy duty transportation on cement floor and steel plate with rotation required. They can turn freely in 360°degree to change the moving direction. So they are powered by battery which won't be affected by the trailing cable during running in small or limited space.

Production process

CNC Cutting

The steel plate is transported from warehouse to CNC cutting workshop for cutting.

Preliminary Assembling

Workers put the cut steel plate together according to the design drawing.

Welding

Weld the steel plate with automatic welding machine after the preliminary assembling.

Post weld treatment

Test the welding section after the welding, polish and burring. Post weld treatment to eliminate welding stress.

Spray Primee

Transport the structure part after processing to painting booth for spraying primer. The main component of the primer is zinc rich epoxy antirust paint. The primer is to two layers

Assembling

Assemble the structure parts after spraying primer with wheels, motors and gear box, etc.

Paint finish

Transport the assembled cart to painting booth, inspect the integrity of primer. After that paint the finish.

Debugging

Debugging the cart after painting the finish with electric control system, after the debugging, the cart will be tested without load and then with load. After the inspection, the cart will be transported to storage area.

FAQ

Will A Transfer Cart Be A Good Solution?
A good question to ask since there are many material handling solutions on the market! Which one is the right choice? For starters, transfer carts are moveable platforms used for the horizontal movement of materials, assemblies, and other items. Consideration must be given to the weight of the load and the travel requirements for the application.
What Are The Advantages of Using a Transfer Cart?
For smaller loads, manual carts can be dedicated to specific work place activities such as shuttling materials. This often makes the carts more available for use. Transfer carts are more accommodating for moving long loads through restrictive passage ways or doorways. For heavier loads transfer carts are an excellent affordable choice for their ability to handle heavy loads. Transfer carts are compact in design and work well in areas with limited floor area. Another advantage over lift trucks is how the cart deck can be customized to suit specific loads.
What Product Handling Applications Use Transfer Carts?
1. Coils (V-Groove deck)
2. Tanks (size/stability for uniformly distributed loads)
3. Assemblies (fixture cradle) for a complete build or to send a partially completed product to the next station (tractors, heavy equipment machinery)
4. Sub-Assembly shuttle from one line to another line
5. Maintenance cart for motors and pumps
6. Equipment support (stand-off deck) for navigating loads to locations with a plant facility
7. Material shuttle for steel tubing (flat decking with guard rails)
8. Elevating platform for assembly process (integrated screw-jack table)
9. Sand casting (flat decking)

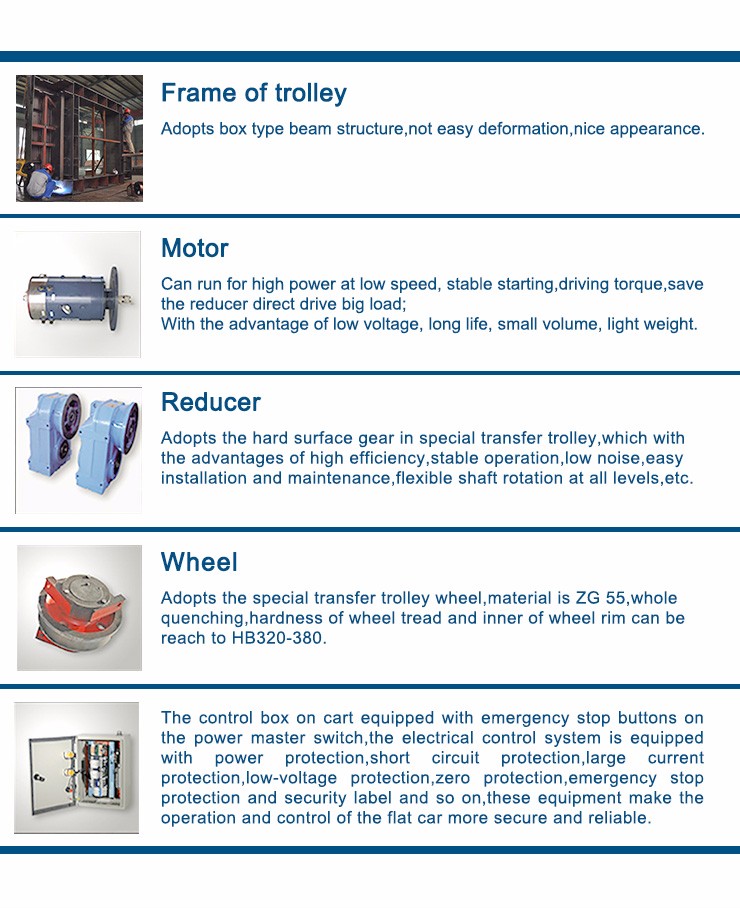

product-1-1
