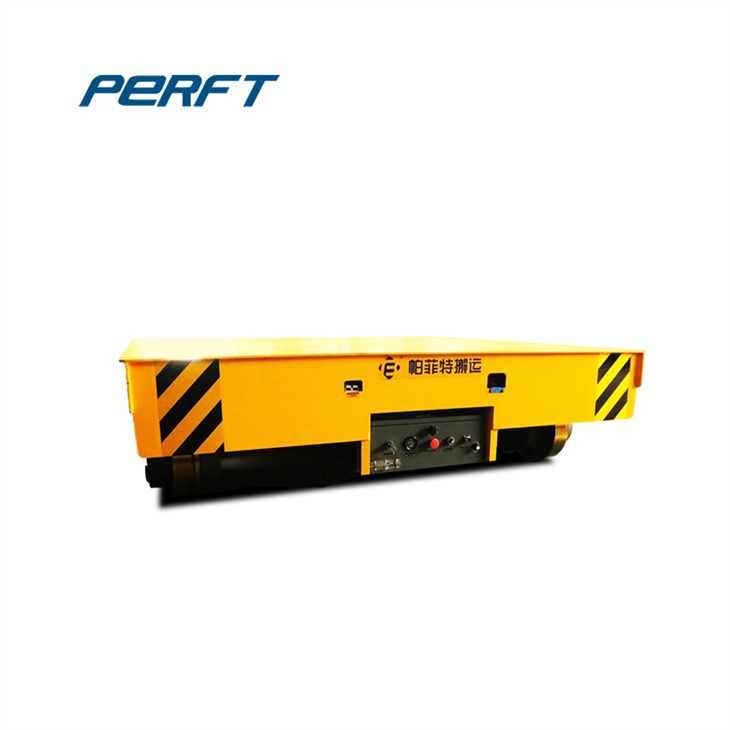

10 Tons Rail Transfer Cart For Factory
Application：Steel Industry, Factory, Warehouse, Port
Brand：Perfect
Load Capacity：1-300 Ton
Special Function：Anti-Explosion, Heat-Resistant, Lifting
Control Mode：Pendant/Remote/PLC Control
Power Mode：Battery/cable powered/rail powered....
Color:Customzied
Trademark:PERFECT
Transport Package:The Whole Cart Will Be Packed by Tarp.
Specification:Customized
Send Inquiry
Product Details of10 Tons Rail Transfer Cart For Factory
10 tons rail transfer cart for factory
Rail Transfer Cart Product specification:
| Model | BXC-2T | BXC-10T | BXC-20T | BXC-30T | BXC-50T | BXC-63T | BXC-150T | |
| Rated load (T) | 2 | 10 | 20 | 30 | 50 | 63 | 150 | |
| Table size | length(L) | 2000 | 3600 | 4000 | 4500 | 5500 | 5600 | 10000 |
| Width(W) | 1500 | 2000 | 2200 | 2200 | 2500 | 2500 | 3000 | |
| Height(H) | 450 | 500 | 550 | 600 | 650 | 700 | 1200 | |
| Wheel Base (mm) | 1200 | 2600 | 2800 | 3200 | 4200 | 4300 | 7000 | |
| Wheel Diameter(mm) | Φ270 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 | |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 75 | 75 | |
| Motor Power (Kw) | 1 | 1.6 | 2.2 | 3.5 | 5 | 6.3 | 15 | |
| Battery Capacity(Ah) | 180 | 160 | 180 | 250 | 330 | 400 | 600 | |
| Battery Voltage(V) | 24 | 48 | 48 | 48 | 48 | 48 | 72 | |
| Running Time When Full Load | 4.32 | 4.8 | 4 | 3.5 | 3.3 | 3 | 2.9 | |
| Running Distance for one Charge(Km) | 6.5 | 7.2 | 4.8 | 4.2 | 4 | 3.6 | 3.2 | |
| Max Wheel Load (KN) | 14.4 | 42.6 | 77.7 | 110.4 | 174 | 221.4 | 265.2 | |

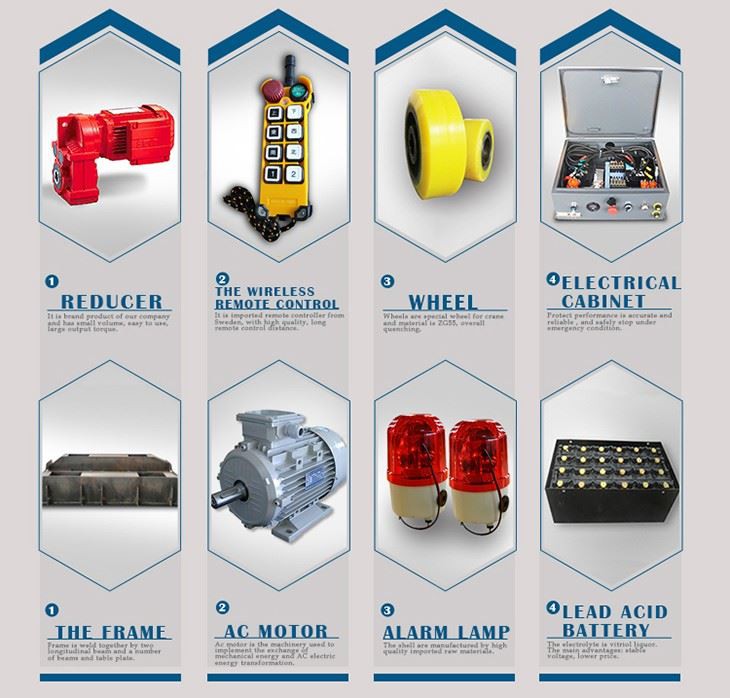

Rail car accessories：
Hot Tags: 10 tons rail transfer cart for factory, China, manufacturers, suppliers, factory, customized, made in China, Ageing Furnace Material Transfer Cart, Plate Transfer Rail Trolley, Railway Guided Transfer Trolley, Cross Rail Trolley, Electric Mold Transfer Trolley, Flatbed Transfer Cart
