Products Description

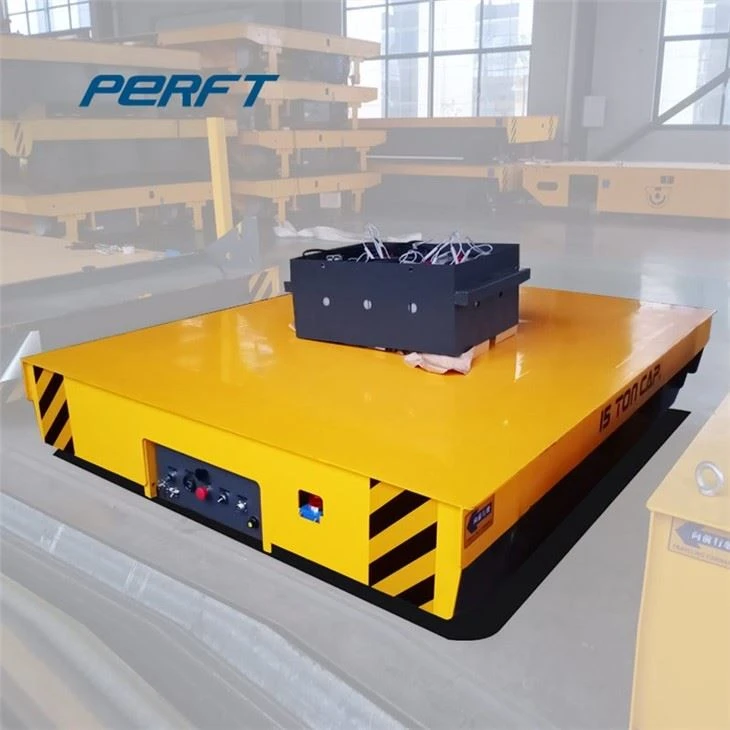

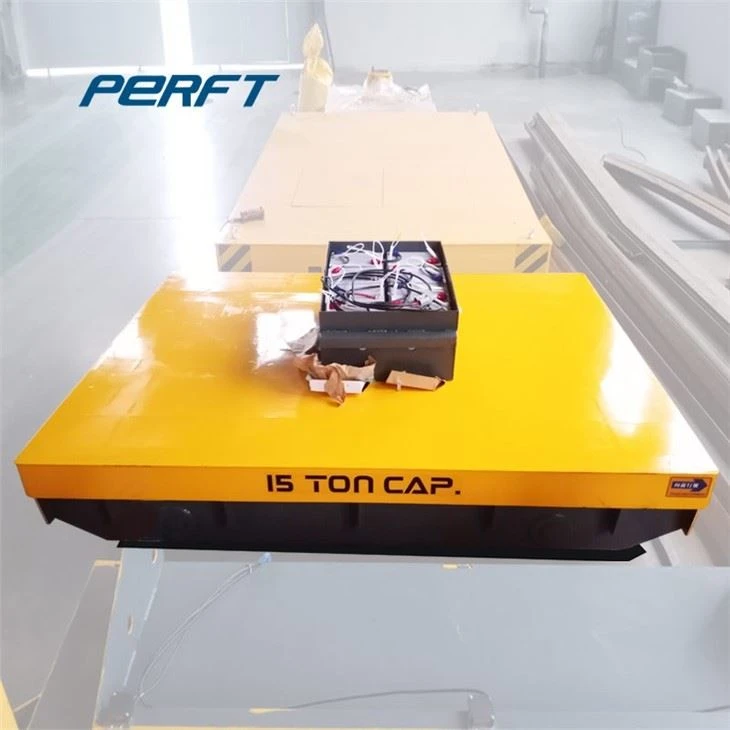

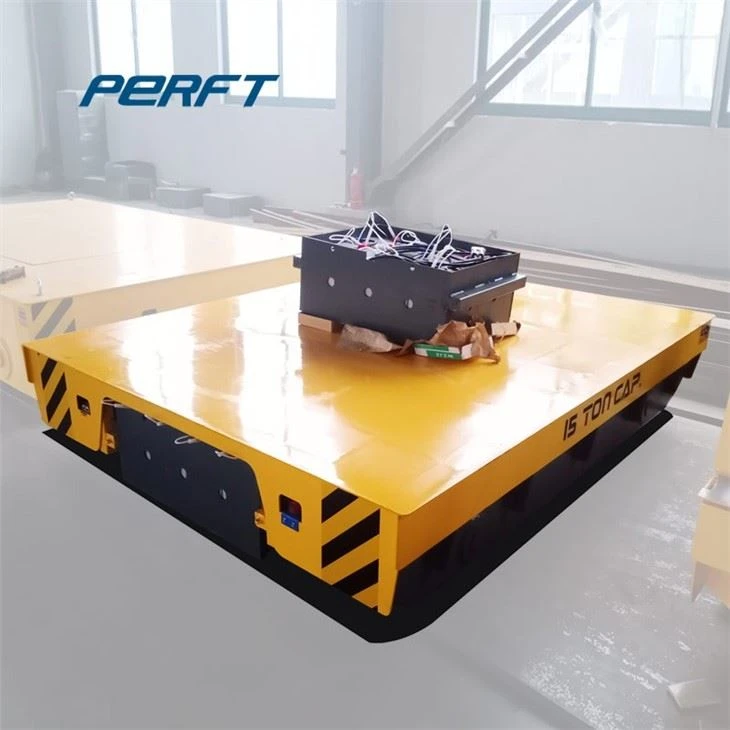

Battery metallurgical ladle rail car. This ladle car has a load capacity of 15 tons. The ladle transfer car battery is powered by a maintenance-free battery. The ladle car has been treated with high temperature resistance to improve safety and increase service life. The exterior of the ladle car is also insulated and protected. The customer customized this optical chartered vehicle because the factory expanded its scale and added a rail transfer vehicle to transport the ladle.

Products Parameters

Model		BXC-2T	BXC-10T	BXC-20T	BXC-30T	BXC-50T	BXC-63T	BXC-150T
Rated load (T)		2	10	20	30	50	63	150
Table Size	Length (liter)	2000	3600	4000	4500	5500	5600	10000
	Width (width)	1500	2000	2200	2200	2500	2500	3000
	Height (high)	450	500	550	600	650	700	1200
Wheel base (mm)		1200	2600	2800	3200	4200	4300	7000
Wheel diameter (mm)		Φ270	Φ300	Φ350	Φ400	Φ500	Φ600	Φ600
Ground clearance (mm)		50	50	50	50	50	75	75
Motor power (kW)		1	1.6	2.2	3.5	5	6.3	15
Battery capacity (Ah)		180	160	180	250	330	400	600
Battery voltage (V)		24	48	48	48	48	48	72
Operating time at full load		4.32	4.8	4	3.5	3.3	3	2.9
Running distance for one charge (km)		6.5	7.2	4.8	4.2	4	3.6	3.2
Maximum wheel load (KN)		14.4	42.6	77.7	110.4	174	221.4	265.2

Power supply mode of steel coil rail transfer vehicle

Henan PERFECT Handling Equipment Co., Ltd. manufactures electric material transfer carts configurable with multiple power options: battery power, cable reel power and low-voltage conductive rail power. Our technical team will select the most appropriate power configuration and transfer cart solution tailored to your on-site operational environment.
Storage Battery Powered Transfer carts: This kind motorized transfer carts powered by battery is suitable for long running distance, low using frequency, "S" "L" and curved tracks, anti-explosion and ferry occasion.
Cable reel powered transfer cart on rails: This kind electric flat transfer carts powered by cable is most used in occasion with high using frequency, short running distance, straight direction route.
Conductive track powered motorized transport trolleys: Our automated rail transfer trolley adopts conductive rails laid on the workshop floor for power supply. Characterized by stable continuous power output, this trolley is well-suited for heavy-load transportation with long-time high-frequency operation. The conductive rails have rigorous construction requirements: overall insulation structure must be adopted in track laying to avoid electric leakage faults.
Steerable transfer carts: These steerable transfer carts apply to multidirectional heavy duty transportation on cement floor and steel plate with rotation required. They can turn freely in 360°degree to change the moving direction. So they are powered by battery which won't be affected by the trailing cable during running in small or limited space.

FAQ

Q: How do you transport the battery powered transfer cars and what is the package ?

A: The cart's body is packed with tarp, the wheels and accessories are packed with wooden case.

Q: What is the leading time, delivery term, and payment term?

A: Usually our leading time is 45 days.About the delivery term, we accept , FOB, CIF. About the payment, we accept T/T or L/C, etc.

Q: What is the table size and load capacity of this electric coil transfer car?

A: The size and load of the transfer cart is customized according to your requirement.

Q: What is your MOQ?

A: The MOQ is 1 set.

Q: Can we choose the power supply for the electric material transfer car?

A: Yes,such as the cable drum, battery powered ,low voltage powered, busbar powered ,trailing cable powered, etc.

Q: What certificates do you have?

A: ISO9001,CE,SASO,SGS,etc.

Q: What is the leading time, delivery term, and payment term?

A: Usually our leading time is 45 days, for some special rail coil transfer car, such as rail coil transfer car, it maybe longer to 60 days. About the delivery term, we accept EXW, FOB, CIF, DDU. About the payment, we accept T/T or L/C.
