Products Description

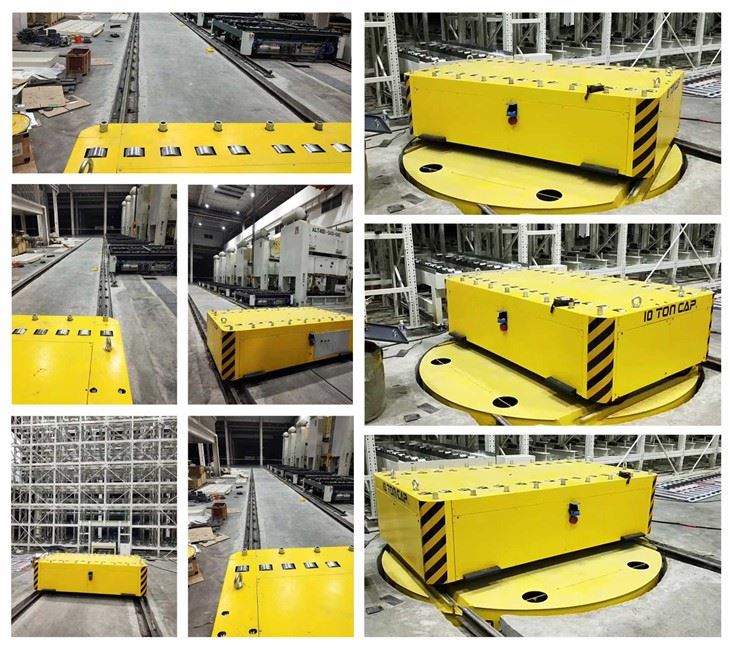

These flat transfer carriages are powered by cable reels, and can be optionally fitted with hydraulic lifting devices. This series of AC cable reel rail-mounted transfer carts is specially engineered for harsh operating environments, including high-temperature and explosive working conditions. Featuring a simple structure and cost-effective pricing, this model is widely adopted for cross-workshop material transfer. Compared with the KPX battery-powered series, this model delivers unlimited continuous runtime, has no strict requirements on rail installation, supports unrestricted load capacity, and is suitable for frequent operation. For running distances exceeding 50 meters, an additional cable guide device is required to ensure orderly cable winding and unwinding.

Products Parameters

Model		BXC-2t	BXC-20t	BXC-50t	BXC-100t
Rated Load(t)		2	20	50	100
Table Size (mm)	Length(L)	2000	4000	5500	6500
	Width(W)	1500	2200	2500	2800
	Height(H)	450	550	650	900
Wheel Base(mm)		1200	2800	4200	4900
Rail Inner Gauge(mm)		1200	1435	1435	200
Wheel Diameter(mm)		270	350	500	600
Wheel Quantity		4	4	4	4
Ground Clearance(mm)		50	50	50	75
Running Speed(min)		0-25	0-20	0-20	0-20
Motor Power(kw)		1	2.2	5	10
Battery Capacity		180	180	330	440
Battery Voltage		24	48	48	72
Running Time When Full Load		4.32	4	3.3	3.2
Running Distance for One Charge(Km)		6.5	4.8	4	3.8
Max Wheel Load(KN)		14.4	77.7	174	343.8
Reference Weight(t)		2.8	5.9	8	14.6
Recommended Rail Model		P15	P24	P43	QU100

Production process

CNC Cutting

The steel plate is transported from warehouse to CNC cutting workshop for cutting.

Preliminary Assembling

Workers put the cut steel plate together according to the design drawing.

Welding

Weld the steel plate with automatic welding machine after the preliminary assembling.

Post weld treatment

Test the welding section after the welding, polish and burring. Post weld treatment to eliminate welding stress.

Spray Primee

Transport the structure part after processing to painting booth for spraying primer. The main component of the primer is zinc rich epoxy antirust paint. The primer is to two layers

Assembling

Assemble the structure parts after spraying primer with wheels, motors and gear box, etc.

Paint finish

Transport the assembled cart to painting booth, inspect the integrity of primer. After that paint the finish.

Debugging

Debugging the cart after painting the finish with electric control system, after the debugging, the cart will be tested without load and then with load. After the inspection, the cart will be transported to storage area.

FAQ

What Are The Advantages of Using a Transfer Cart?
For smaller loads, manual carts can be dedicated to specific work place activities such as shuttling materials. This often makes the carts more available for use. Transfer carts are more accommodating for moving long loads through restrictive passage ways or doorways. For heavier loads transfer carts are an excellent affordable choice for their ability to handle heavy loads. Transfer carts are compact in design and work well in areas with limited floor area. Another advantage over lift trucks is how the cart deck can be customized to suit specific loads.
What Product Handling Applications Use Transfer Carts?
1. Coils (V-Groove deck)
2. Tanks (size/stability for uniformly distributed loads)
3. Assemblies (fixture cradle) for a complete build or to send a partially completed product to the next station (tractors, heavy equipment machinery)
4. Sub-Assembly shuttle from one line to another line
5. Maintenance cart for motors and pumps
6. Equipment support (stand-off deck) for navigating loads to locations with a plant facility
7. Material shuttle for steel tubing (flat decking with guard rails)
8. Elevating platform for assembly process (integrated screw-jack table)
9. Sand casting (flat decking)
How can Transfer Carts be customized?
Please tell us:
What load or product will be transferred onto the cart?
What is the weight of the heaviest lift or load?
What are the dimensions? (Length; Width ; Height)
What is the trip time and frequency? (# of Trips per , Shifts per day:)
What is the travel area you need to cover? (Rail/cement floor, Indoor/Outdoor, straight line travel, etc)
What is the distance to travel?
Other relevant information or using condition.
