Motorized Material Transfer Trolley
The motorized material transfer trolley is used to transfer material from one area to another. According to customer requirements, the carrying capacity of motorized material transfer trolley ranges from 1 ton to 500 tons.
Technical Parameters
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |

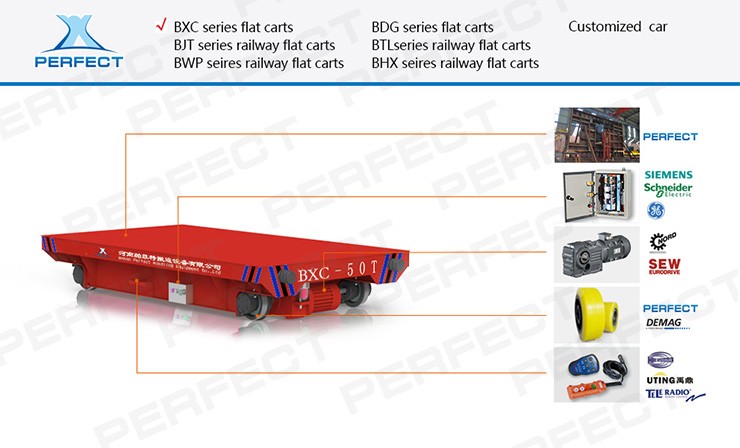

The BXC series rail electric transfer trolleys are powered by batteries. The battery is installed in the car. The BXC series rail mobile transfer trolley can run between two vertical rails, and the trolley can also run on L-shaped rails, S-shaped rails or curved rails.
Our service
Our promise: The safety factor of the rail electric transfer cart is not less than 120%.
Freely design auxiliary devices or basic drawings, provide technical services and drawings and materials.
Provide customers with 16-hour engineering service and 24-hour Internet service.
During the warranty period, if our rail electric transfer cart fails to work normally, we can provide you with maintenance technical support or replacement of related parts within 24 hours.
Solve quality problems within 24 hours, with a serious attitude from beginning to end. Pay attention to reputation and maintain the company's image.
