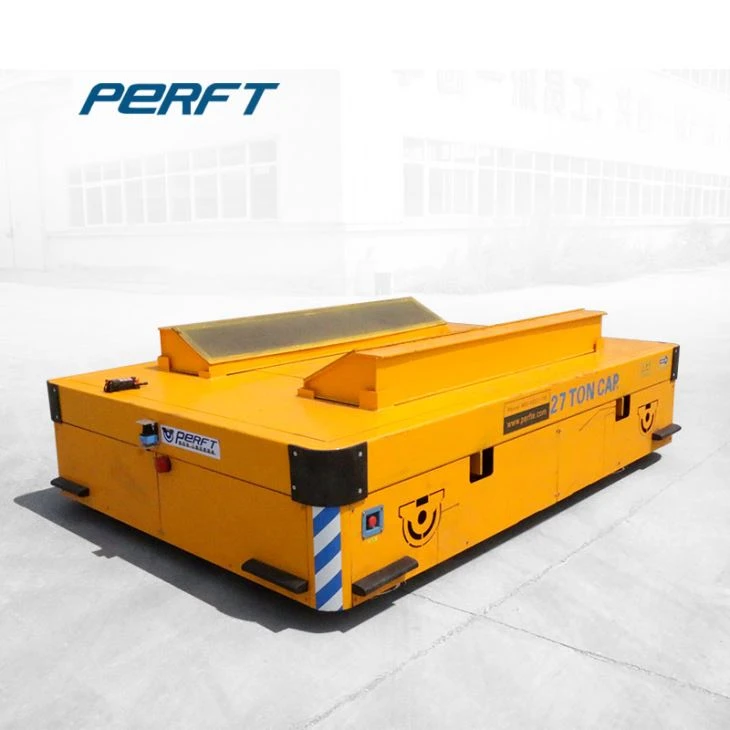

Introduction of battery powered coil transfer trolley

battery powered coil transfer trolley is powered by storage batteries. DC motor obtains power from the electronic control system to start, stop, forward and backward trams. The battery powered coil transfer trolley can run on straight, L-shaped or curved tracks. If necessary, we can also install a hydraulic lifting system. V-shaped and rollers are mounted on the battery powered coil transfer trolley to prevent the coil from falling off the battery powered coil transfer trolley. The surface of the trolley is made of high-temperature resistant materials. And all components can work properly.

Application Site of battery powered coil transfer trolley

Product scope: Specializing in the production of various types of rail transit vehicles.
Applicable industries: Widely used in production lines of metallurgy, manufacturing, oil and gas, mold workshops, shipyards, chemical plants, automobiles, mines, power plants, coal, paper and other industries.
Featured product: Battery driven steel coil transfer vehicle, specially designed for the transportation of circular materials such as steel coils and pipes.
Core advantage: After loading goods, it can ensure the safe operation of the vehicle while ensuring that the goods are in a safe state.

Parameters of Rail Moving Coils Transfer Trolley

Model		2t	20t	50t	100t
Rated Load(t)		2	20	50	100
Table Size(mm)	Length(L)	2000	4000	5500	6500
	Width(W)	1500	2200	2500	2800
	Height(H)	500	600	700	1000
Wheel Base(mm)		1200	2800	4200	4900
Rail Inner Gauge(mm)		1200	1435	1435	2000
Wheel Diameter(mm)		270	350	500	600
Wheel Quantity		4	4	4	4
Ground Clearance(mm)		50	50	50	75
Running Speed(min)		0-25	0-20	0-20	0-20
Motor Power(kw)		0.8	2.5	5.5	11
Running Distance(m)		25	30	50	50
Max Wheel Load(KN)		14.4	77.7	174	343.8
Reference Weight(t)		2.5	5.6	7.8	14.1
Recommended Rail Model		P15	P24	P43	QU100
