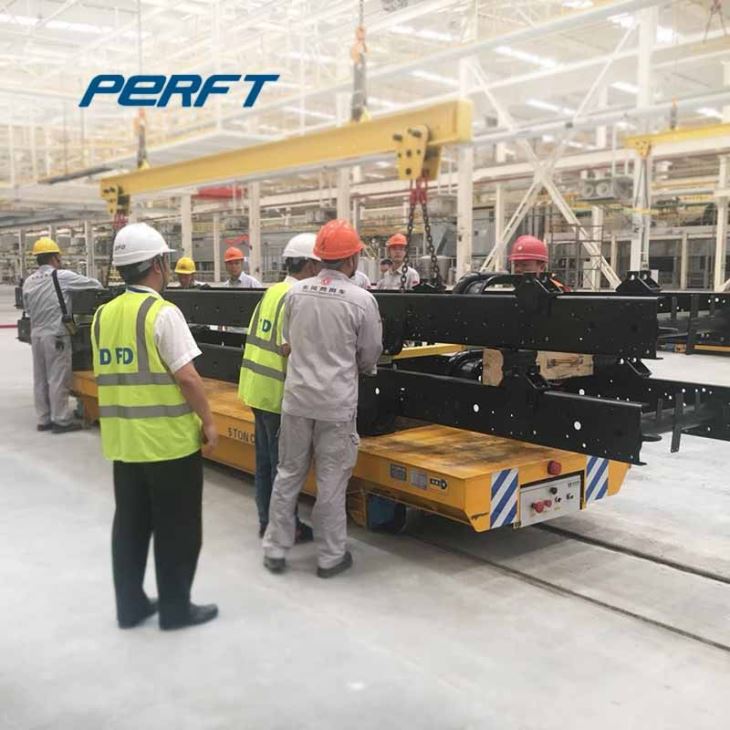

Cross Rail Transfer Cart

The cross rail transfer cart is an electric rail transfer cart plant in-transit vehicle that resolves product transport between factory spans. Also known as trolleys, electric flat cars. The utility model has the advantages of simple structure, convenient use, easy maintenance, large carrying capacity and less pollution. It is widely used in machine building and metallurgical factories, and it is used as a crane to transport heavy loads across the workshop.

Cross rail transfer car have five powered modes:

1. The battery drum cross rail transfer cart is powered by a cable reel AC 380V. The cable reel is hysteresis coupled to ensure that the cable is evenly stressed and not easily pulled. The AC 380V provides power to the YZ lifting metallurgical motor on the flat car, and the motor drives the flat car to run.

2. The cross rail transfer cart is a cable-powered electric flat car. One end of the cable is connected to the ground power supply, and is introduced into the control box through the cable pulley and the traction wire rope, and then supplies power to the YZ motor on the flat car to drive the flat car to run.

3. The cross-rail transfer cart is a safety-slide-line powered electric flat car. The utility model is to open a trench on the side of the track, and install a safety sliding contact line in the ground trench, and a cover plate fixed on the ground with a hinge on one side is arranged on the ground trench.

4. Low-voltage rail powered cross rail transfer cart is a 36V single-phase (three-phase) low-voltage rail-powered electric flat car, powered by rail slide lines. The ground step-down transformer control cabinet steps down the single-phase (three-phase) AC 380V to single-phase (three-phase) 36V, feeds it to the flat car via the track slip line, and then boosts the single-phase (three-phase) via the on-board step-up transformer. ) AC 380V

5. Battery rail car Powered by battery. The battery supplies power to the DC traction motor, and the DC motor drives the flat car to run.

Q1: What is it used for?
For transferring heavy materials across intersecting rail lines in workshops and factories.

Q2: Does it require rails?
Yes, it operates on a customized cross-rail system.

Q3: What is the load capacity?
From 1 ton to 300 tons, customizable

Q4: What power supply options are available?
Battery, cable reel, trailing cable, sliding contact line, or low-voltage rail power.

Q5: Is it safe to operate?
Yes, with emergency stop and optional safety protection devices.
