Products Description

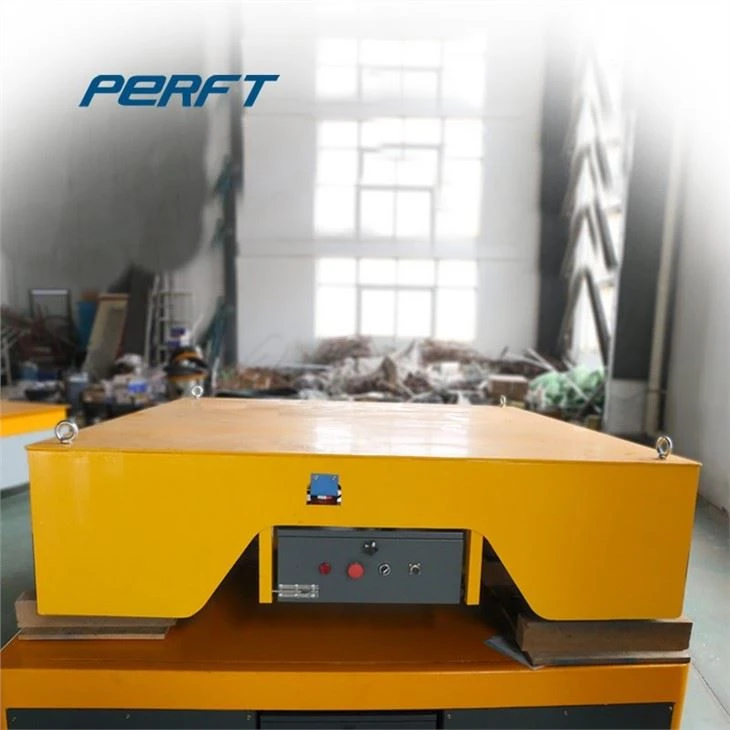

Low-Voltage Rail Distribution Electric Flatbed, Also known as electric flatbed, level car, car, Over-the-span, ground climbing car, etc., Is a kind of factory rail electric transport vehicle, The first it is a guide rail type transport vehicle, Must be paved On the floor rail, The track Is generally a literal Junction steel rail; Secondly, It is an electric push car, driven by the reducer motor to start, And then it is an electric flatbed truck, The cabinet counter surface is flat without a box cover, Under special circumstances, It can also Be in The Three-Dimensional Map But No Box Cover, The Bodyless Steering Wheel Only Has A Forward Regressive Orientation (Even If It Is Turned, The City Is Turned By The Rail).

Case

The customer of this project is a large-scale enterprise group that mainly develops products such as bridges, gantry cranes, port machinery, electric hoists, reducers, bulk material conveying equipment, parking equipment, and special robots.
The project ordered is our company's low-voltage rail car. The rail transfer car has a load of 20 tons. The table size of the rail car is customized. The low-voltage rail power supply is used. Increase the voltage to 220v to provide power to the rail transfer vehicle. The rail transfer vehicle purchased this time is mainly used in Workshop No. 5, and the beams used in the transfer production are used for welding.

Products Parameters

Model		BXC-2T	BXC-10T	BXC-20T	BXC-30T	BXC-50T	BXC-63T	BXC-150T
Rated load (T)		2	10	20	30	50	63	150
Table Size	Length (liter)	2000	3600	4000	4500	5500	5600	10000
	Width (width)	1500	2000	2200	2200	2500	2500	3000
	Height (high)	450	500	550	600	650	700	1200
Wheel base (mm)		1200	2600	2800	3200	4200	4300	7000
Wheel diameter (mm)		Φ270	Φ300	Φ350	Φ400	Φ500	Φ600	Φ600
Ground clearance (mm)		50	50	50	50	50	75	75
Motor power (kW)		1	1.6	2.2	3.5	5	6.3	15
Battery capacity (Ah)		180	160	180	250	330	400	600
Battery voltage (V)		24	48	48	48	48	48	72
Operating time at full load		4.32	4.8	4	3.5	3.3	3	2.9
Running distance for one charge (km)		6.5	7.2	4.8	4.2	4	3.6	3.2
Maximum wheel load (KN)		14.4	42.6	77.7	110.4	174	221.4	265.2

Notes

1 Load capacity ,table size and rail gauge can be customized

2 Options : Remote radio control (imported or made in China )

3 Automatic stop when detecting obstacle or person ,limit switches (to limit travel)

4 Battery type ( Free of maintenance battery ,lithium battery ,explosion -proof battery ,and Anti -high temperature battery )

5 motor (DC motor with brush and DC motor brushless )

6 Electrical parts (imported or made in china )

Company Profile

Henan Perfect Handling Equipment Co., Ltd. is specializing in the design and manufacture of heavy material transport system to solve every material handling requirement. Our product includes Industrial Trailers, Transfer Cars, Electric Railway Transfer Trolley, Battery Operated Transport Trolley, Coil and pipes Carrier Equipment, Ladle Handling Equipment, Hydraulic Lift Table, Turntables and many other specialty items.Our line of Industrial Transfer Carts are designed and manufactured to accommodate the needs of a wide range of industries including Steel, Aluminum, Automotive, Heavy Manufacturing and others. These material handling equipment are designed to operate on floor mounted rails and are used to transport heavy materials across crane bays or in areas not serviced by an overhead crane.

FAQ

Q: How do you transport the battery powered transfer cars and what is the package ?

A: The cart's body is packed with tarp, the wheels and accessories are packed with wooden case.

Q: What is the leading time, delivery term, and payment term?

A: Usually our leading time is 45 days.About the delivery term, we accept , FOB, CIF. About the payment, we accept T/T or L/C, etc.

Q: What is the table size and load capacity of this electric coil transfer car?

A: The size and load of the transfer cart is customized according to your requirement.

Q: What is your MOQ?

A: The MOQ is 1 set.

Q: Can we choose the power supply for the electric material transfer car?

A: Yes,such as the cable drum, battery powered ,low voltage powered, busbar powered ,trailing cable powered, etc.

Q: What certificates do you have?

A: ISO9001,CE,SASO,SGS,etc.

Q: What is the leading time, delivery term, and payment term?

A: Usually our leading time is 45 days, for some special rail coil transfer car, such as rail coil transfer car, it maybe longer to 60 days. About the delivery term, we accept EXW, FOB, CIF, DDU. About the payment, we accept T/T or L/C.
