Rail Powered Electric Transfer Cart
Rail Powered Electric Transfer Cart
The low-voltage rail power transfer cart is to step down the AC 380V power supply through a transformer to AC 36V two phases, and connect them to two rails respectively. The wheels on the rail flat car introduce the AC 36V power supply on the track into the on-board electrical box. After rectification The module rectifies AC 36V to DC 36V, and then controls the DC motor through the DC control system to start, stop, forward, reverse, and adjust the speed of the transfer cart.
Low-voltage rail-powered transfer cart has higher requirements for track laying (requires insulated tracks), and is suitable for small load capacity (≤50T), high frequency of use, and medium and long-distance transportation. It is not restricted by distance, but the operating distance exceeds 70 meters, and the number of transformers needs to be increased to compensate for the track voltage drop.
Technical Parameters
| Model | BDGZ-2t | BDGZ-20t | BDGZ-50t | BDGZ-100t | BDGZ-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 850 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 0.8 | 2.5 | 5.5 | 11 | 15 | |
| Transformer Power(KVA) | 3 | 6.8 | 10 | 30 | 30 | |
| Transformer Quanity | 1 | 1 | 1 | 1 | 1 | |
| Running Distance(m) | 70 | 70 | 50 | 50 | 50 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
Advantage of low-voltage rail power transfer cart:
1. High-quality reducer
All gears adopt CNC grinding technology with high precision, good contact, high transmission efficiency, high carrying capacity and long service life, ensuring that our transfer cart can serve customers well and will not fail in the future.
2. High quality motor
It has a corresponding fast and large starting torque, which can provide rated torque from zero speed to rated speed, which can ensure that our transfer cart can serve our customers well and will not malfunction in the future.

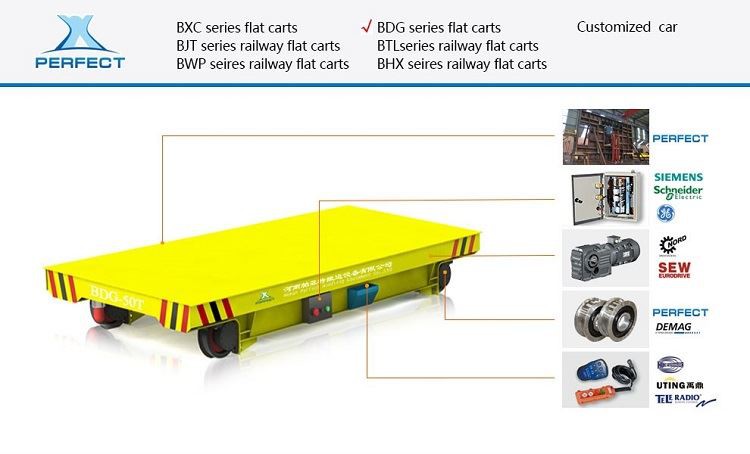

3. The perfect partner for all components
The cost-effective configuration of each structure of the electric transfer cart effectively prolongs the service life of the electrical appliances, thereby extending the service life of the electric transfer cart
4. The wheel adopts angular bearing seat, which is easy to install and adjust
In order to appropriately improve the processing accuracy of related parts, improve the installation and manufacturing accuracy of the whole vehicle, place the wheel deviation, aggravate the wear of the wheel rim, and increase the friction resistance, etc.
Application
