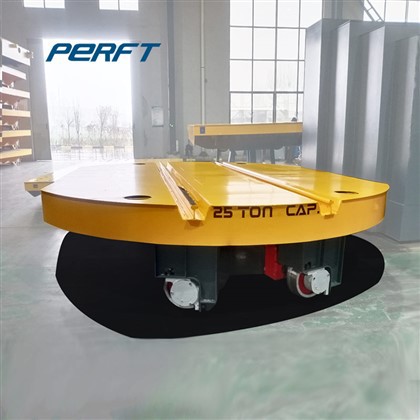

Industrial Turntable Transfer Cart for Foundry Plant 30t

Product parameters of Industrial Turntable Transfer Cart for Foundry Plant 30t;

Load capacity: 30t;
Table size: 4500x3000x500;
Safety protection: external heat insulation protection, explosion-proof motor, explosion-proof lamp
Power supply: maintenance-free battery; rail; cable drum

Product description:

Rail turntable car is that it can rotate 360 degrees, allowing goods to be transported in any direction. This provides greater flexibility in factory layouts, as goods can be moved quickly and efficiently without the need for complex routing systems. The ability to turn in any direction also means that rail turntable cars take up less space and can change direction more quickly, improving productivity and reducing production times.

Rail turntable car is its ease of use. Unlike traditional rail cars, which can only move in one direction, the rail turntable car can quickly move in any direction required. This means that goods can be loaded and unloaded more efficiently, reducing downtime and improving overall efficiency. Additionally, the rail turntable car can be operated by a single person, further streamlining operations in factories and warehouses.

Product Specifications

Model	BXC-2T	BXC-20T	BXC-50T	BXC-100T	BXC-150T
Rated Load(t)	2	20	50	100	150
Wheel Base(mm)	1200	2800	4200	4900	7000
Rail Inner Gauge(mm)	1200	1435	1435	2000	2000
Wheel Diameter(mm)	270	350	500	600	600
Wheel Quantity	4	4	4	4	8
Ground Clearance(mm)	50	50	50	75	75
Running Speed(min)	0-25	0-20	0-20	0-20	0-18
Motor Power(kw)	1	2.2	5	10	15
Battery Capacity	180	180	330	440	600
Running Time	4.32	4	3.3	3.2	2.9
Battery Voltage	24	48	48	72	72
Running Distance(Km)	6.5	4.8	4	3.8	3.2

Frequently Asked Questions

What does this vehicle primarily transport in foundries?

Answer: It mainly transports heavy materials weighing up to 30 tons, such as sand molds, cast iron/cast steel components, and can change direction while carrying loads (without additional equipment), making it convenient for navigating between workstations in the shop floor.

Foundries are hot and dusty environments. Can this machine withstand the conditions?

Answer: Yes. The motor and electrical components are rated for temperatures up to 150°C. The electrical enclosure is dust-proof, and the wheels and turntable feature dust-proof designs to prevent sand particles and debris from jamming the mechanism.

Q: What safety measures are in place for transporting 30-ton castings?

A: Emergency stop buttons (for immediate power cutoff), audible and visual alarms (to alert nearby personnel), and anti-slip mats on the platform prevent castings from sliding.

Is operation and maintenance troublesome?

Answer: Not at all. Workers can learn to use it quickly. Maintenance simply involves periodically cleaning dust from the turntable and lubricating the bearings-no professionals are required.

How many degrees can the turntable rotate? Can it be controlled manually?

Answer: It can rotate 90° or 180°. It can be operated using a wireless remote control, eliminating the need to get out of the vehicle to adjust the direction.
