Products Description

Our products are not only popular in mainland China, also exported to US, Russia, India, Saudi Arabia, Germany, Japan, Canada, South Africa, Malaysia, Singapore, Hong Kong, Taipei, Brazil, Thailand, Netherlands, Syria, Turkey, Nepal etc;

According to the transfer cart's table size and quantity, transported to clients by FCL, LCL, Bulk Transportation, Open Top Container, Flat Rack Container and so on;

The delivery time is around 30 days after clients pays the down payment;

Products Parameters

Model		BXC-2t	BXC-20t	BXC-50t	BXC-100t
Rated Load(t)		2	20	50	100
Table Size (mm)	Length(L)	2000	4000	5500	6500
	Width(W)	1500	2200	2500	2800
	Height(H)	450	550	650	900
Wheel Base(mm)		1200	2800	4200	4900
Rail Inner Gauge(mm)		1200	1435	1435	200
Wheel Diameter(mm)		270	350	500	600
Wheel Quantity		4	4	4	4
Ground Clearance(mm)		50	50	50	75
Running Speed(min)		0-25	0-20	0-20	0-20
Motor Power(kw)		1	2.2	5	10
Battery Capacity		180	180	330	440
Battery Voltage		24	48	48	72
Running Time When Full Load		4.32	4	3.3	3.2
Running Distance for One Charge(Km)		6.5	4.8	4	3.8
Max Wheel Load(KN)		14.4	77.7	174	343.8
Reference Weight(t)		2.8	5.9	8	14.6
Recommended Rail Model		P15	P24	P43	QU100

Company Profile

Henan Perfect Handling Equipment Co., Ltd. is specializing in the design and manufacture of heavy material transport system to solve every material handling requirement. Our product includes Industrial Trailers, Transfer Cars, Electric Railway Transfer Trolley, Battery Operated Transport Trolley, Coil and pipes Carrier Equipment, Ladle Handling Equipment, Hydraulic Lift Table, Turntables and many other specialty items.Our line of Industrial Transfer Carts are designed and manufactured to accommodate the needs of a wide range of industries including Steel, Aluminum, Automotive, Heavy Manufacturing and others. These material handling equipment are designed to operate on floor mounted rails and are used to transport heavy materials across crane bays or in areas not serviced by an overhead crane.

Power supply mode of transfer Cart

The motorized material handling equipment manufactured by Henan PERFECT Handling Company can be designed with different power supply mode, which include storage battery, cable, conductive rails, and so on. According to customers' different application environment, we would recommend the best suitable transfer solution with different power supply mode:

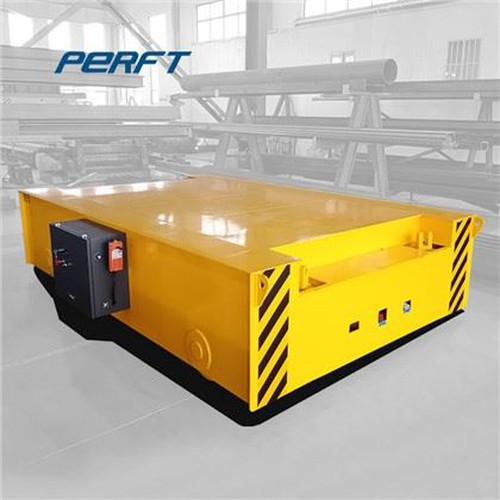

Storage Battery Powered Transfer carts: This kind motorized transfer carts powered by battery is suitable for long running distance, low using frequency, "S" "L" and curved tracks, anti-explosion and ferry occasion.
Cable reel powered transfer cart on rails: This kind electric flat transfer carts powered by cable is most used in occasion with high using frequency, short running distance, straight direction route.

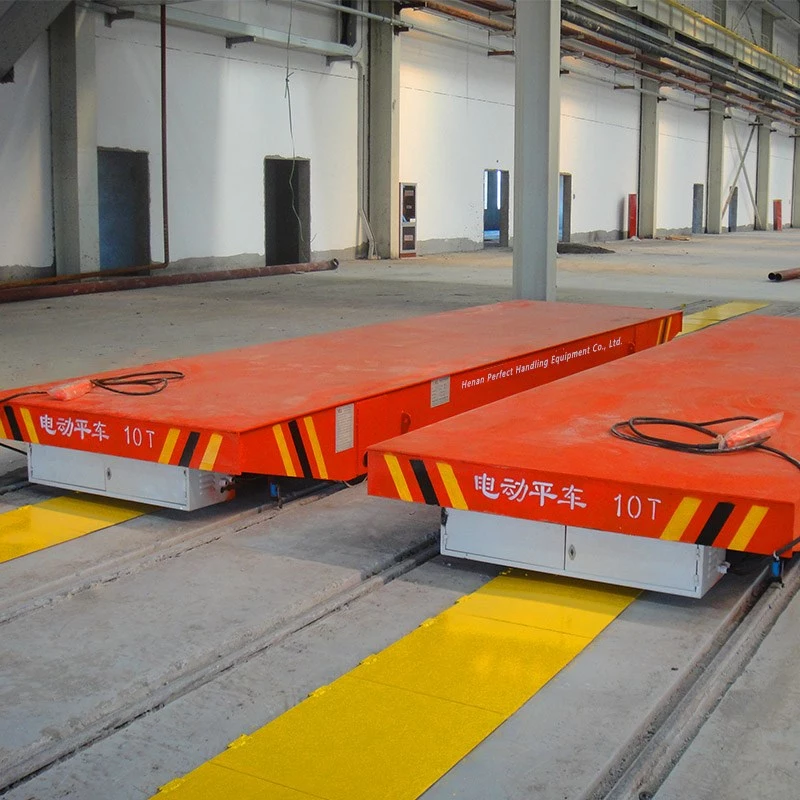

Conductive track powered motorized transport trolleys: This kind material automated transport trolleys get power from the conductive tracks installed on the floor. These transport trolleys are suitable for high using frequency and large loading capacity. It has strict requirements about the track installation which need to be insulated.
Steerable transfer carts: These steerable transfer carts apply to multidirectional heavy duty transportation on cement floor and steel plate with rotation required. They can turn freely in 360°degree to change the moving direction. So they are powered by battery which won't be affected by the trailing cable during running in small or limited space.

Our Products

Transfer Cart
Trackless transfer car, Battery operated transport trolley, Coils cart, Ladle transfer cart, Hydraulic scissors lift table cart, etc.
Rail Cart
Rail transfer cart, Cross-rail transport trolley, Curved rails transfer cart, S shape railway transport cart, L shape track transporter, etc.
Industrial Trailer
Flatbed trailer, Factory trailer, Utility trailer, Workshop transfer trailer, Airport baggage cargo trailer, Car transport trailer, Motorized transfer trailer, etc.
Cargo Transportation
Die cart, Coils transport cart, pipes transfer carriage, steel beam transporter, aluminum plate transport vehicle, transformer carrier bogie.
Special Handling Equipment
Ladle transfer trolley, Ferry Transfer wagon, Cross-rail transport equipment, Motorized turntable, Vacuum furnace transfer cart, Automatic vehicle, etc.

FAQ

Will A Transfer Cart Be A Good Solution?
A good question to ask since there are many material handling solutions on the market! Which one is the right choice? For starters, transfer carts are moveable platforms used for the horizontal movement of materials, assemblies, and other items. Consideration must be given to the weight of the load and the travel requirements for the application.
What Are The Advantages of Using a Transfer Cart?
For smaller loads, manual carts can be dedicated to specific work place activities such as shuttling materials. This often makes the carts more available for use. Transfer carts are more accommodating for moving long loads through restrictive passage ways or doorways. For heavier loads transfer carts are an excellent affordable choice for their ability to handle heavy loads. Transfer carts are compact in design and work well in areas with limited floor area. Another advantage over lift trucks is how the cart deck can be customized to suit specific loads.
What Product Handling Applications Use Transfer Carts?
1. Coils (V-Groove deck)
2. Tanks (size/stability for uniformly distributed loads)
3. Assemblies (fixture cradle) for a complete build or to send a partially completed product to the next station (tractors, heavy equipment machinery)
4. Sub-Assembly shuttle from one line to another line
5. Maintenance cart for motors and pumps
6. Equipment support (stand-off deck) for navigating loads to locations with a plant facility
7. Material shuttle for steel tubing (flat decking with guard rails)
8. Elevating platform for assembly process (integrated screw-jack table)
9. Sand casting (flat decking)
