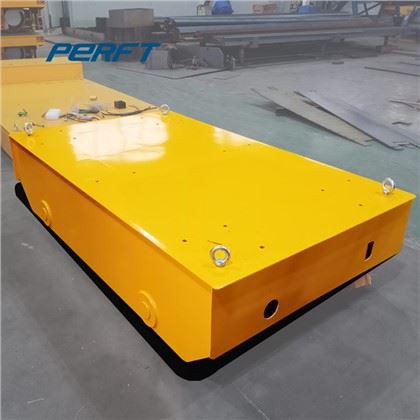

Workshop Motorized Transfer Trolley

The motorized transfer trolley is a small car idesigned for material handling inside factories, powered by electricity. It is environmentally friendly, flexible, and efficient, and is widely used in workshops, warehouses, assembly lines, and other scenarios

Powered by batteries (such as lead-acid batteries, lithium batteries) or cables, driven by motors to move wheels, used for short distance transportation of raw materials, semi-finished products, finished products or tools in factories. It usually has the characteristics of lightweight, low noise, and easy operation.

The invention of intelligent upgraded small cars is AGV,AGV car integrates AI algorithms to achieve dynamic path planning (avoiding congested areas), multi vehicle collaborative scheduling, and even forms a fully automated logistics network by linking with robots and three-dimensional warehouses

Rail Cart parameter:

Model		BXC-2T	BXC-10T	BXC-20T	BXC-30T	BXC-50T	BXC-63T	BXC-150T
Rated load (T)		2	10	20	30	50	63	150
Table size	length(L)	2000	3600	4000	4500	5500	5600	10000
	Width(W)	1500	2000	2200	2200	2500	2500	3000
	Height(H)	450	500	550	600	650	700	1200
Wheel Base (mm)		1200	2600	2800	3200	4200	4300	7000
Wheel Diameter(mm)		Φ270	Φ300	Φ350	Φ400	Φ500	Φ600	Φ600
Ground Clearance (mm)		50	50	50	50	50	75	75
Motor Power (Kw)		1	1.6	2.2	3.5	5	6.3	15
Battery Capacity(Ah)		180	160	180	250	330	400	600
Battery Voltage(V)		24	48	48	48	48	48	72
Running Time When Full Load		4.32	4.8	4	3.5	3.3	3	2.9
Running Distance for one Charge(Km)		6.5	7.2	4.8	4.2	4	3.6	3.2
Max Wheel Load (KN)		14.4	42.6	77.7	110.4	174	221.4	265.2
