product introduction

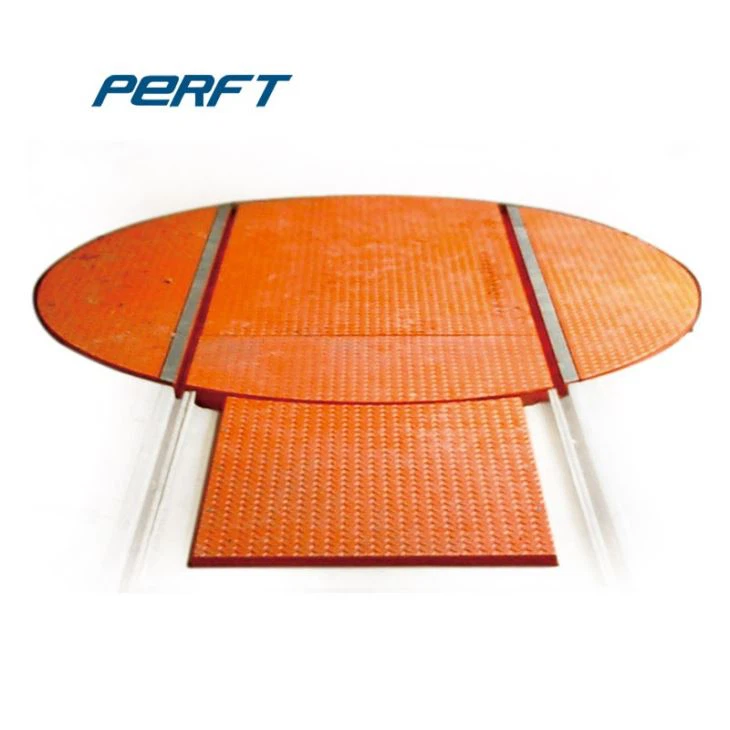

Rail transfer cart mounted on turntable is a kind of equipment that can reduce the demand for the site of small factory track workshop. In general, if the space used in the workshop is limited, the equipment such as the track carousel can be considered. The turntable can be used for the rail transit vehicle to change the track and change the direction. According to the different needs of customers, the size and function of the rail transfer carriage mounted on turntable can also be customized differently.

The customization requirements of the track carousel are determined by the following points:

1. Model of docking track;

2. The drop between the docking track and the floor: flush, above the floor, below the floor;

3. The height and width of the wheel;

4. Specifications of the turntable: diameter and height

There are two ways to place the rail transfer cart mounted on turntable:

1. The electric turntable is placed in the ground pit, the turntable track is level with the ground track, and the steering angle of the turntable is realized by the hydraulic push rod, which is precise and stable.

2. Above ground. This installation method requires the rail car to climb a certain slope.

There are two types of track turntables: "one word" and "cross":

The one-track track is generally suitable for the workshop ground track in the form of 90°

The cross track is generally applicable to the workshop ground track in the form of a cross

The function of the electric turntable is to achieve 90° right-angle turning with the supporting electric flat car, which greatly improves the efficiency of cargo operation.

The Turntable Rail Transfer Cart is a specialized material handling solution engineered for cross-track transport of rail-bound vehicles. In factory environments, it supports 90° rotation to enable rapid adjustment of railway vehicles and efficient vehicle scheduling-streamlining material flow and maximizing the utilization of track infrastructure.

Working Principle

A defining design element is the integration of guide rails directly onto the turntable. The operational process unfolds as follows:

The rail transport vehicle travels onto the turntable's integrated rails.

The turntable then rotates (either automatically or manually) until its rails are precisely aligned with the target track.

Once alignment is confirmed, the transport vehicle can seamlessly move onto the perpendicular (vertical) rail, completing the directional transfer.

Application & Performance Advantages

Versatile Track Compatibility: The cart is well-suited for diverse track layouts, including circular rails, vertical rails, and cross rails-adapting to complex factory configurations and addressing varied transport needs.

Superior Operational Performance: It operates with smooth, low-vibration movement, ensuring stable transport of vehicles even under heavy loads. Additionally, its high rail alignment accuracy eliminates gaps or misalignment, preventing disruptions to the transfer process.

Automation Capability: For enhanced efficiency and reduced manual intervention, a PLC (Programmable Logic Controller) can be integrated. This enables fully automated electrical operation, aligning with smart factory workflows and minimizing operational errors.
