product introduction

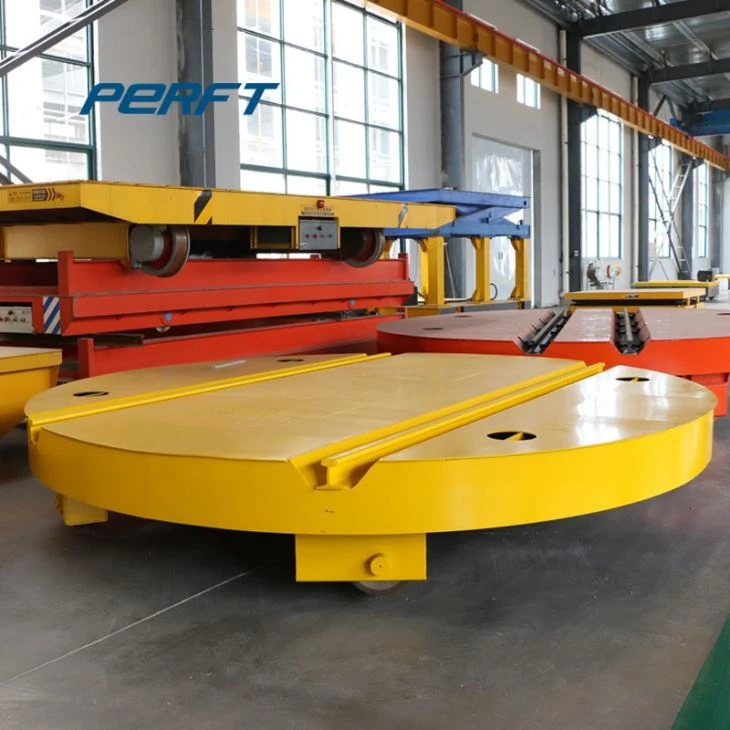

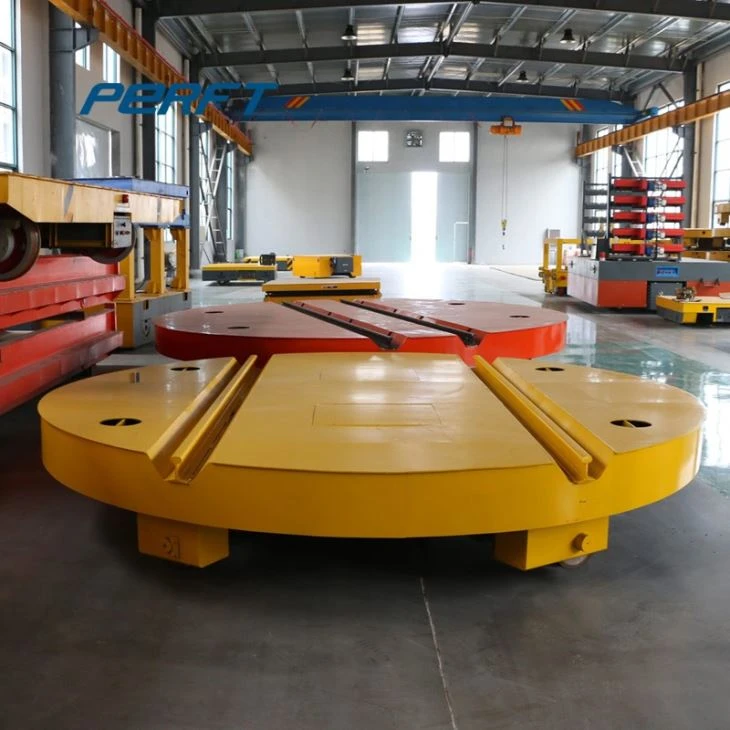

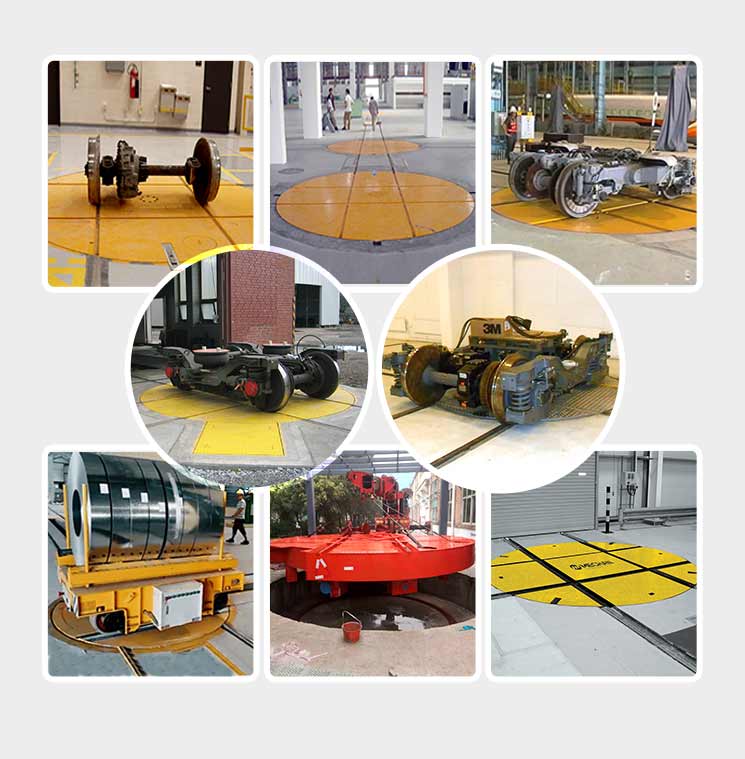

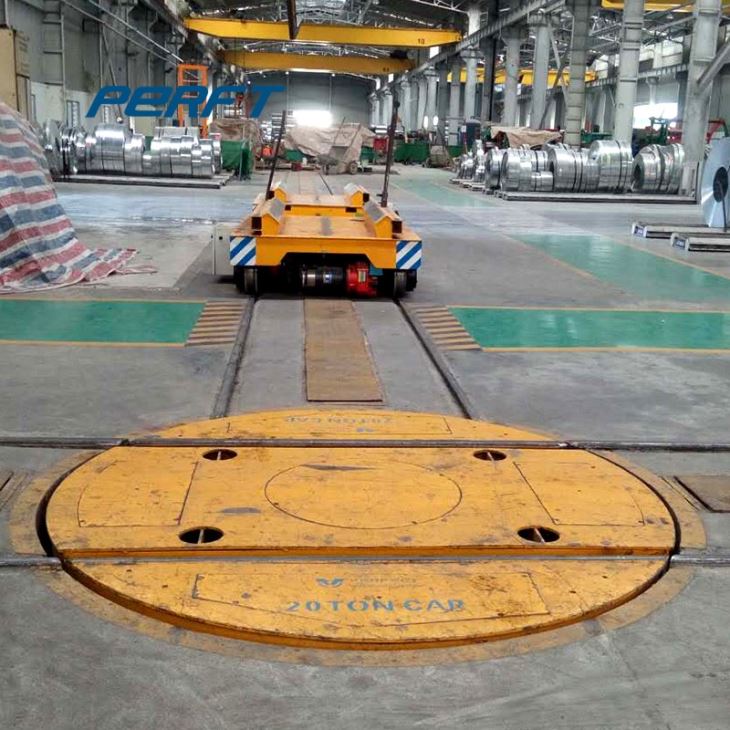

Electric bogie turntable: The intelligent "dispatching center" of Railway Maintenance workshops
The electric bogie turntable is a core equipment in modern rail transit maintenance bases, specially designed for the precise steering and workstation flow of locomotive and EMU bogies. It completely replaces the traditional hoisting and relocation method. Through millimeter-level positioning and fully automatic control, it enables the heavy-duty bogie (3-25 tons) to rotate 0°-360° without blind spots and move laterally, significantly enhancing maintenance efficiency and operational safety. It is hailed as the "intelligent Rubik's Cube of the rail vehicle 4S store".

Three major innovative values

One-click linkage control: Input the target workstation number on the touch screen, and the rotation Angle will be automatically planned (supporting preset 30°/45°/90°/180°).

The 15-ton load rotation only takes 40 seconds (while traditional hoisting takes 8 to 10 minutes), saving over 2,000 working hours annually

🔒 SAFE and reliable - 100% eliminate the risk of manual handling
Self-developed anti-offset locking mechanism: hydraulic wedge block + laser alignment sensor to prevent load offset (impact resistance ≥5G)

Triple security protection:
✅ Automatic power-off in case of overload (110% rated load warning)
✅ Rotating zone infrared human body sensor emergency stop
✅ Emergency manual unlock device (manual reset in case of sudden power failure)

IP54 protection grade: Resistant to oil stains and metal dust, suitable for the harsh environment of maintenance workshops

🌐 Smart iot - a new benchmark for digital maintenance
Digital twin System: Real-time display of bogie position/weight/rotation trajectory (supports monitoring on PC/ mobile terminals)

MES system integration: Automatically record the working frequency of the turntable, energy consumption data, and fault codes, and generate equipment health reports

Remote diagnosis module: 5G transmission of operation data enables manufacturers to predict potential faults such as bearing wear

Core parameter advantage
The functional dimension of this device indicates the pain points of traditional solutions
The load capacity is 5 to 25 tons (customizable), and the risk of the lifting gear shaking is high
The rotational accuracy is ±0.5°, and the manual pushing error is greater than 5°
The positioning speed is 0.5-2r/min, with stepless speed regulation. Hoisting requires the cooperation of multiple people
The service life of the steel wire rope is ≥10 years (1 million rotations), and it needs to be replaced frequently

Why choose our electric bogie turntable?

■ Military-grade structure: The countertop is made of a single piece of Q460 special steel plate laser-cut, with a deformation of less than 0.1mm/m
■ European Standard certification: Passed the EN 15085 welding system certification and ISO 13849 safety level PLd
■ Lifetime maintenance commitment: Key components (servo motors/controllers) are guaranteed for 10 years
■ Customized on demand: Supports pit type/mobile type/multi-station row type design, and is compatible with wide gauge/meter gauge/standard gauge

Contact us immediately to get a customized bogie turnover optimization solution!

wechat /WhatsApp/ Tel: +86 15090325221 email： info@perfte. com
