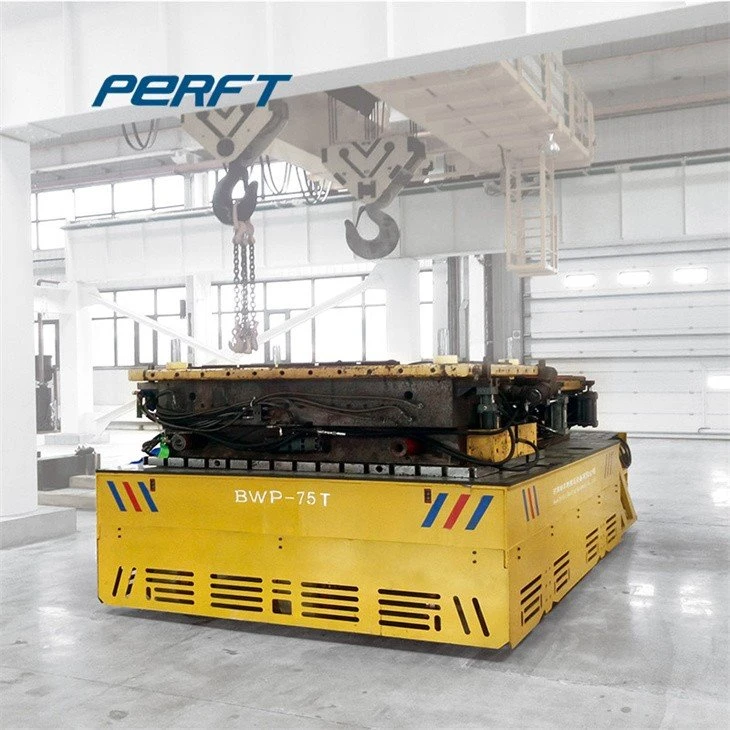

Trackless Transfer Cart For Mold Handling
Trackless Transfer Cart For Mold Handling
The BWP series trackless transfer cart is composed of power supply, transmission mechanism, steel structure load-bearing frame, steering system, running mechanism, control module, and fault diagnosis module.
We provide a variety of trackless transfer carts to meet the unique needs of stamping and forming. These products include mold transport equipment, mold transfer cart and mold trailer systems. According to the transportation route or the customer's project plan, the transfer cart can be run on the railway or concrete floor.
Rail transfer cart is mainly used for fixed routes without turning, short-distance and high-frequency use. Trackless transfer cart can realize 360° steering, and is suitable for long-distance, low-frequency and non-fixed routes. All these mold transfer carts are safe and easy to drive, so when you get it, you can immediately use it to transport your molds.
Model | BWP-2T | BWP-10T | BWP-20T | BWP-30T | BWP-50T | BWP-63T | BWP-150T | |
Rated load (T) | 2 | 10 | 20 | 30 | 50 | 63 | 150 | |
Table size | length(L) | 2000 | 3600 | 4000 | 4500 | 5500 | 5600 | 10000 |
Width(W) | 1500 | 2000 | 2200 | 2200 | 2500 | 2500 | 3000 | |
Height(H) | 450 | 500 | 550 | 600 | 650 | 700 | 1200 | |
Wheel Base (mm) | 1200 | 2600 | 2800 | 3200 | 4200 | 4300 | 7000 | |
Wheel Diameter(mm) | Φ270 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 | |
Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 75 | 75 | |
Motor Power (Kw) | 1 | 1.6 | 2.2 | 3.5 | 5 | 6.3 | 15 | |
Battery Capacity(Ah) | 180 | 160 | 180 | 250 | 330 | 400 | 600 | |
Battery Voltage(V) | 24 | 48 | 48 | 48 | 48 | 48 | 72 | |
Running Time When Full Load | 4.32 | 4.8 | 4 | 3.5 | 3.3 | 3 | 2.9 | |
Running Distance for one Charge(Km) | 6.5 | 7.2 | 4.8 | 4.2 | 4 | 3.6 | 3.2 | |
Max Wheel Load (KN) | 14.4 | 42.6 | 77.7 | 110.4 | 174 | 221.4 | 265.2 | |
Remarks: The technical parameters of the transfer carts are for reference only, and can be customized according to your actual needs. If you have any questions, please contact us. Our professional engineers will help you solve transmission problems at any time.
Our service
1. Professional consulting service team
2. Professional R&D and design team
3. Experienced product testing team
4. Advanced technical team of product line
5. Provide after-sales service
6. Standard export packaging
7. Fast processing after confirming the order
